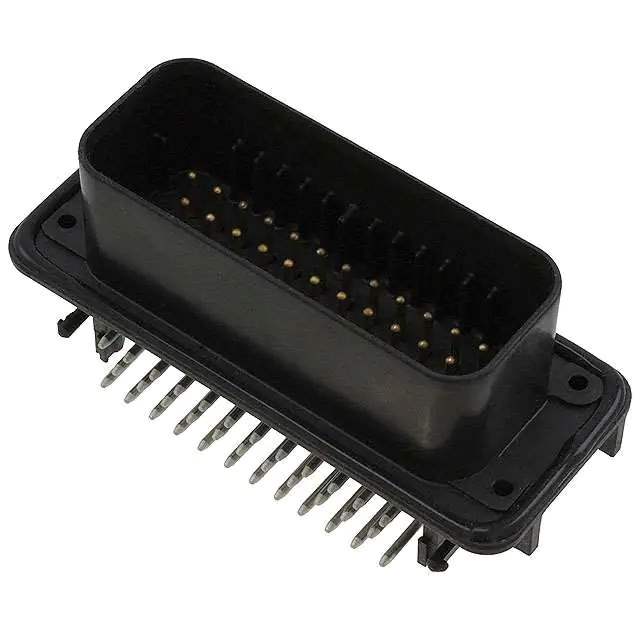

1-776163-1 Real Image
Same model may have multiple batches, images only for reference.

1-776163-1

Part No 1-776163-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 35POS 4MM / Connector Header Panel Mount, Through Hole, Right Angle 35 position 0.157" (4.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPSEAL
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.157" (4.00mm)
Number of Positions 35
Number of Rows 3
Row Spacing - Mating 0.157" (4.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Shape Circular
Contact Finish - Mating Gold-Palladium
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide, Sealed
Temperature Range - Operating -40°C ~ 125°C
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications Automotive, Industrial
Base Product Number 776163
Standard Package 32 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847348-1-776163-1
Ultra Librarian 3D Model Ultra Librarian 1-776163-1 CAD Model

Description

The 847348-1-776163-1 is a header connector from TE Connectivity's AMPSEAL series.

  • Series: AMPSEAL
  • Connector Type: Header
  • Number of Positions: 35
  • Features: Board Guide, Sealed
  • Application: Industrial, Automotive
  • Contact Type: Male Pin
  • Loaded Positions: All
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Voltage Rating: 250VAC
  • Packaging: Bulk
  • Standard Package: 32 pcs
  • Operating Temperature: -40°C ~ 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH affected
  • HTSUS: 8536.69.4040
  • Product Status: Active
