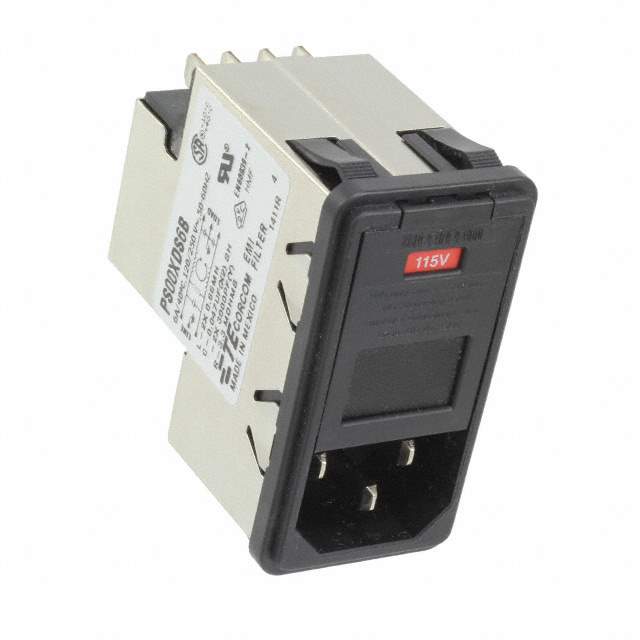

Same model may have multiple batches, images only for reference.

1-6609952-9

Name: 1-6609952-9
Brand: TE Connectivity
SKU: 1315233
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1-6609952-9
Manufacturer	TE Connectivity
Catalog	Power Entry Connectors - Inlets, Outlets, Modules
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr	TE Connectivity Corcom Filters
Series	P, Corcom
Package	Bulk
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current - IEC	6A
Voltage - IEC	120VAC
Current - UL	6A
Voltage - UL	250VAC
Filter Type	Filtered (EMI, RFI) - Commercial
Accomodates a Fuse	Yes (Fuse Not Included)
Number of Positions	3
Mounting Type	Panel Mount, Snap-In
Termination	Quick Connect - 0.187" (4.7mm)
Features	Shielded, Voltage Selector
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Panel Cutout Dimensions	Variable Size
Panel Thickness	0.031" ~ 0.114" (0.79mm ~ 2.90mm)
Approval Agency	CSA, UL, VDE
Base Product Number	6609952
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1315233-1-6609952-9
Ultra Librarian 3D Model	Ultra Librarian 1-6609952-9 CAD Model

Alternative Products

Description

The TE Connectivity Corcom Filters 6609952-1 is a power entry connector that is a part of the P, Corcom series.

Series: P, Corcom
Positions: 3
Current (IEC): 6A
Current (UL): 6A
Voltage (IEC): 120VAC
Voltage (UL): 250VAC
Shielded: Yes
Voltage Selector: Yes
Connector Type: Receptacle with male blades - module
Termination: Quick connect - 0.187" (4.7mm)
Packaging: Bulk
Connector Style: IEC 320-C14
Filter Type: Filtered (EMI, RFI) - commercial
Fuse Holder: Twin fused drawer (fuse not included)
Panel Cutout Dimension: Variable size
Panel Thickness: 0.031" ~ 0.114" (0.79mm ~ 2.90mm)
Mounting Type: Panel mount, snap-in
ECCN: EAR99
REACH: Unaffected
HTSUS: 8536.69.8000
Manufacturer Part Number: 1315233-1-6609952-9
Approvals: CSA, UL, VDE
