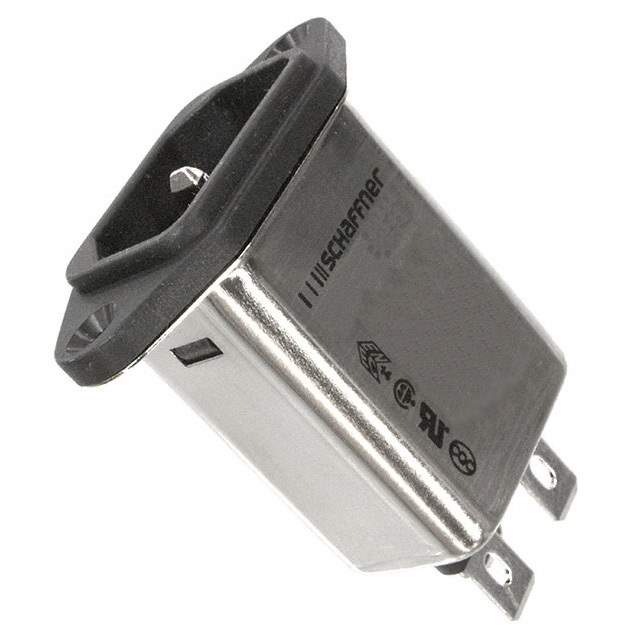

FN9222-3-06 Real Image
Same model may have multiple batches, images only for reference.

FN9222-3-06

Part No FN9222-3-06
Manufacturer Schaffner EMC Inc.
Catalog Barrel - Power Connectors
Description PWR ENT RCPT IEC320-C14 PANEL QC / Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
Datasheet
FN9222-3-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr Schaffner EMC Inc.
Series FN 9222
Package Tray
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current - UL 3A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Features Front or Rear Side Mount
Panel Cutout Dimensions Rectangular - 28.50mm x 21.50mm
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approval Agency CQC, CSA, ENEC, UL
Base Product Number FN9222
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Names 803743,FN9222 - 3 -06,817-1418,FN9222306,298-239
Standard Package 120
Win Source Part Number 1232239-FN9222-3-06
Ultra Librarian 3D Model Ultra Librarian FN9222-3-06 CAD Model

Description

The FN 9222 series power entry connector is an excellent option for your inlet, outlet, and module needs.

  • Positions: 3
  • Voltage Rating: 250VAC
  • Connector Type: Receptacle, Male Blades
  • Termination: Quick Connect - 0.250" (6.3mm)
  • Mounting Type: Panel Mount, Flange
  • Material Flammability Rating: UL94 V-2
  • Ingress Protection: IP40
  • Panel Cutout Dimensions: 0.250" (6.3mm)
  • Packaging: Tray
  • Filter Type: Filtered (EMI, RFI) - Commercial
  • Base Product Number: FN9222
