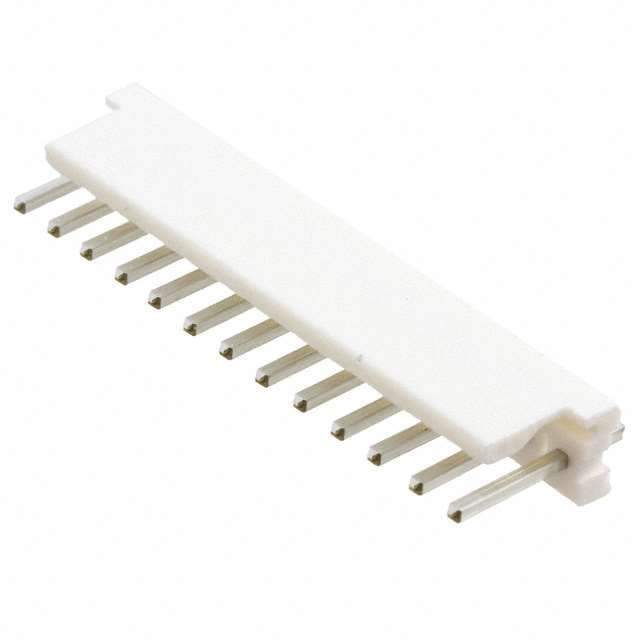

1-640445-3 Real Image
Same model may have multiple batches, images only for reference.

1-640445-3

Part No 1-640445-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 13POS 3.96MM / Connector Header Through Hole 13 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 13
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Base Product Number 640445
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-1-640445-3,16404453,-1-640445-3-SI,-2-42934-1422-SI,-2-42934-1422-SI-ND
Standard Package 500
Win Source Part Number 1334272-1-640445-3
Ultra Librarian 3D Model Ultra Librarian 1-640445-3 CAD Model

Description

The TE Connectivity AMP Connectors 1334272-1-640445-3 is a 13-position header connector that is commonly used in general purpose and industrial applications.

  • Positions: 13
  • Application: General purpose and industrial
  • Voltage Rating: 600VAC
  • Mounting Style: Through-hole
  • Color: Natural
  • Flammability Rating: UL94 V-0
  • Insulation Material: Thermoplastic and glass filled
  • Supply and Demand Status: Sufficient
  • Current Rating: Varies by wire gauge
