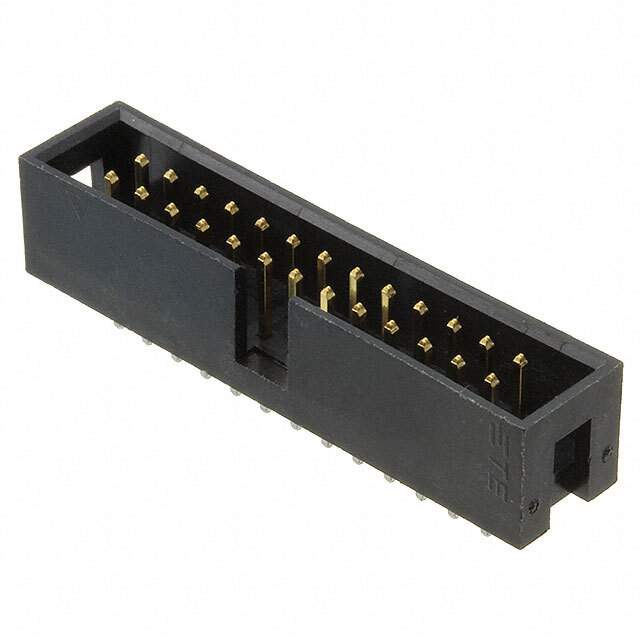

2-1634688-6 Real Image
Same model may have multiple batches, images only for reference.

2-1634688-6

Part No 2-1634688-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Datasheet
2-1634688-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.343" (8.71mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T
Features Keying Slot
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 80.0µin (2.03µm)
Other Names -2-1634688-6-SI,A117426
Standard Package 160
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293114-2-1634688-6
Ultra Librarian 3D Model Ultra Librarian 2-1634688-6 CAD Model

Description

The AMP-Latch header connector is a male pin connector with 26 positions and 2 rows.

  • Features: Keying slot, push-pull fastening, and shrouded 4-wall design
  • Insulation Material: Polyamide (PA6T) and nylon 6T
  • Flammability Rating: UL94 V-0
  • Contact Material: Brass
  • Mating Finish: Gold
  • Post Finish: Tin
  • Contact Finish Thickness (Mating): 10.0µin (0.25µm)
  • Contact Finish Thickness (Post): 80.0µin (2.03µm)
  • Operating Temperatures: -40°C to 105°C
  • Current Rating: 3A
  • Status: Obsolete
  • Packaging: Bulk
  • Standard Package: 160 connectors
