Same model may have multiple batches, images only for reference.

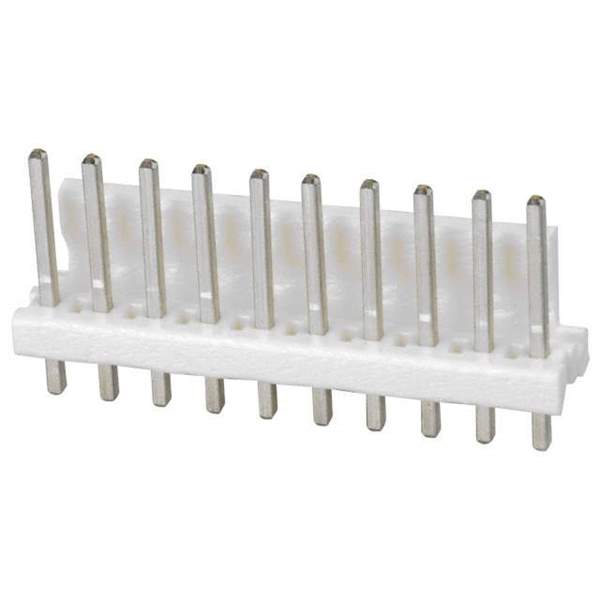

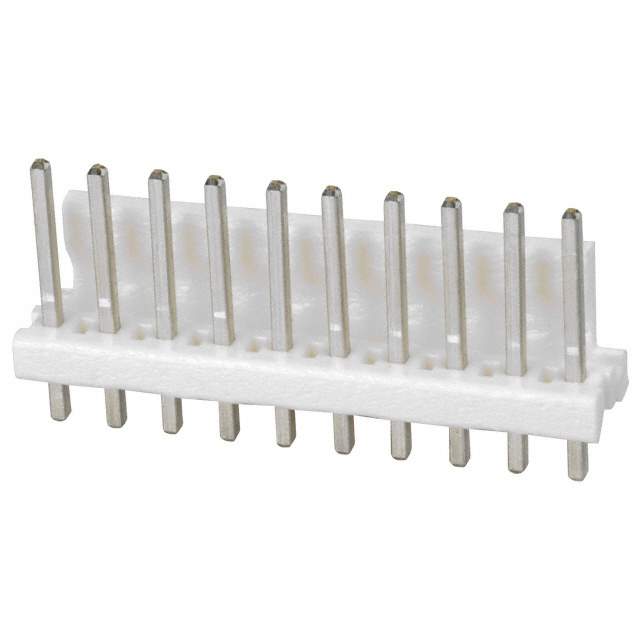

1-640445-0 Real Image
Same model may have multiple batches, images only for reference.

1-640445-0

Part No 1-640445-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS .156 TIN
Datasheet
1-640445-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Win Source Part Number 1001619-1-640445-0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1-640445-0 CAD Model

Description

The TE Connectivity AMP Connectors header is a male pin connector designed for general-purpose and industrial applications.

  • Positions: 10, all positions loaded
  • Connector Type: Header
  • Contact Type: Male Pin
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Voltage Rating: 600VAC
  • Current Rating: Varies by wire gauge
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Thermoplastic, glass-filled
  • Style: Board to cable/wire
  • Pitch-Mating: 0.156" (3.96mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Insulation Color: Natural
  • Shrouding: Shrouded - 1 wall
  • Temperature Range: -55°C to 105°C
