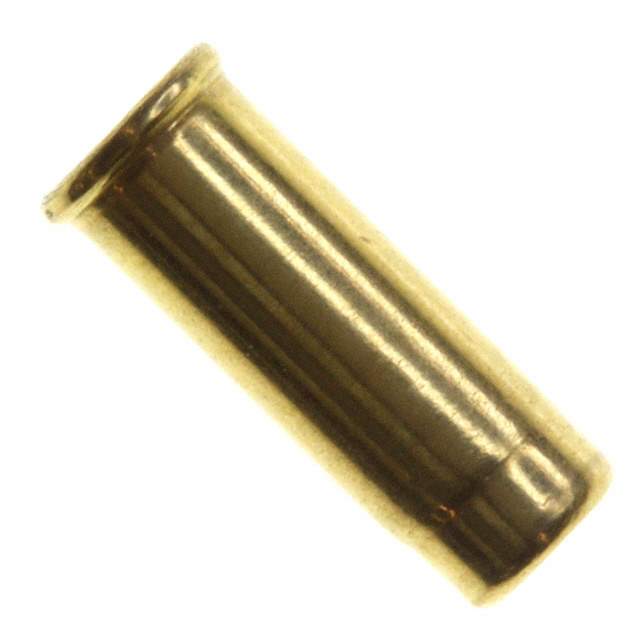

1-50871-3 Real Image
Same model may have multiple batches, images only for reference.

1-50871-3

Part No 1-50871-3
Manufacturer TE Connectivity
Catalog Terminals
Description CONN PIN RCPT .050-.057 SOLDER / Pin Receptacle Connector 0.050" ~ 0.057" (1.27mm ~ 1.45mm) No Tail Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - PC Pin Receptacles, Socket Connectors
Mfr TE Connectivity AMP Connectors
Series 5
Package Bulk
Product Status Obsolete
Tail Type No Tail
Termination Solder
Length - Overall 0.288" (7.32mm)
Accepts Pin Diameter 0.050" ~ 0.057" (1.27mm ~ 1.45mm)
Mounting Hole Diameter 0.101" ~ 0.103" (2.57mm ~ 2.62mm)
Flange Diameter 0.118" (3.00mm)
Socket Depth 0.275" (6.99mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Features Closed Bottom
Temperature Range - Operating -65°C ~ 125°C
Base Product Number 50871
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1341048-1-50871-3
Ultra Librarian 3D Model Ultra Librarian 1-50871-3 CAD Model

Description

The TE Connectivity AMP Connectors PC Pin Receptacle is a connector used to connect two PCBs together.

  • Bottom: Closed
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Packaging: Bulk
  • Standard Package: 2,000
  • Overall Length: 0.288" (7.32mm)
  • Pin Diameter: 0.050" ~ 0.057" (1.27mm ~ 1.45mm)
  • Mounting Hole Diameter: 0.101" ~ 0.103" (2.57mm ~ 2.62mm)
  • Flange Diameter: 0.118" (3.00mm)
  • Socket Depth: 0.275" (6.99mm)
  • Temperature Range: -65°C to 125°C
  • HTSUS: 8538.90.8180
