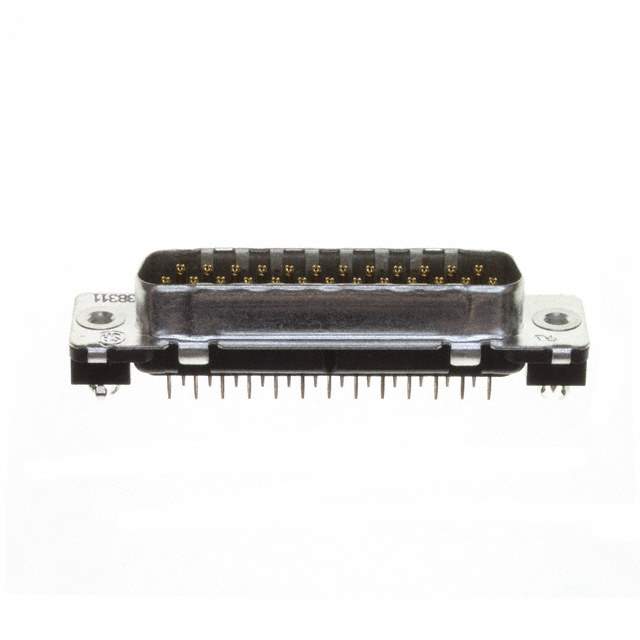

1-338311-2 Real Image
Same model may have multiple batches, images only for reference.

1-338311-2

Part No 1-338311-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 25POS VERT SLDR / 25 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Through Hole
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Features Board Lock, Grounding Indents
Color Black
Dielectric Material Polyester, Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 338311
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-1-338311-2,13383112,A35165
Standard Package 30
Win Source Part Number 1333204-1-338311-2
Ultra Librarian 3D Model Ultra Librarian 1-338311-2 CAD Model

Description

The 1333204-1-338311-2 is a D-Sub connector assembly manufactured by TE Connectivity AMP Connectors.

  • Packaging: Tray
  • Number of Positions: 25
  • Color: Black
  • Features: Board Lock, Grounding Indents
  • Connector Type: Plug, Male Pins
  • Contact Type: Signal
  • Number of Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Current Rating: 6A
  • Operating Temperature: -55°C to 105°C
  • ROHS3 Compliant: Yes
