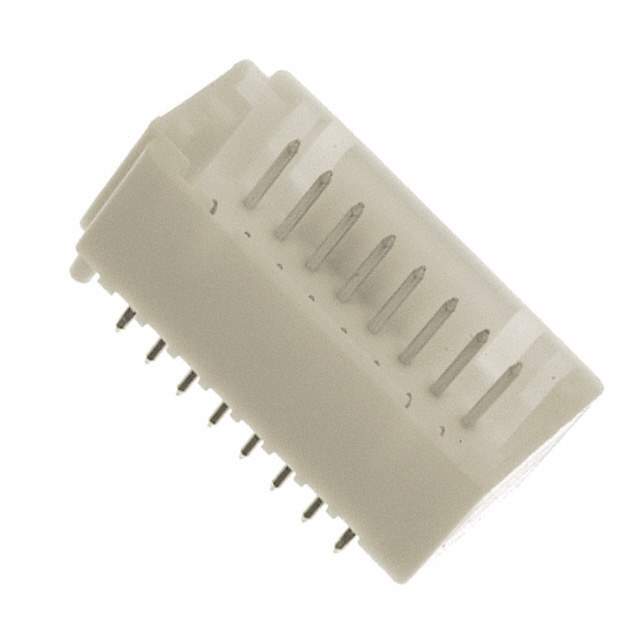

1-292141-6 Real Image
Same model may have multiple batches, images only for reference.

1-292141-6

Part No 1-292141-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 16POS DUAL VERT TIN
Datasheet
1-292141-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series CT
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 16
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.256" (6.50mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.185" (4.70mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.386" (9.80mm)
Insulation Height 0.295" (7.50mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating Varies by Wire Gauge
Voltage Rating 125VAC
Applications General
Win Source Part Number 760347-1-292141-6
Popularity Medium
Supply and Demand Status Balance
Family Name 292141
Introduction Date May 24, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1-292141-6 CAD Model

Description

The TE Connectivity AMP Connectors CT series header is a through-hole connector with 16 positions and 2 rows.

  • Positions: 16
  • Rows: 2
  • Material: Brass
  • Contact Plating: Tin
  • Voltage Rating: 125VAC
  • Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Shrouded: 4 Walls
  • Row Spacing: 0.256" (6.50mm)
  • Applications: General
  • Pitch: 0.079" (2.00mm)
  • Fastening Type: Detent Lock
  • Board Guide: Yes
  • Mating Contact Length: 0.185" (4.70mm)
  • Post Contact Length: 0.126" (3.20mm)
  • Overall Contact Length: 0.386" (9.80mm)
  • Insulation Height: 0.295" (7.50mm)
  • Style: Board to Cable/Wire
  • Termination: Soldering
  • Contact Material: Brass
