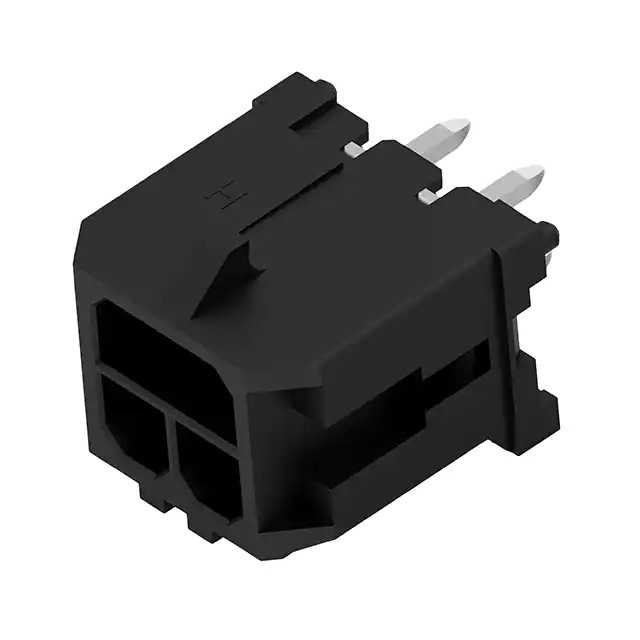

1-2204801-8

Name: 1-2204801-8
Brand: TE Connectivity
SKU: 1364701
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-2204801-8
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 3MM / Connector Header Through Hole 4 (Power) position 0.118" (3.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	ELCON Micro
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Number of Positions	4 (Power)
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	-
Insulation Height	0.390" (9.91mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	-
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Board Guide
Temperature Range - Operating	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	-
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	600V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	2204801
MSL Level	Not Applicable
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364701-1-2204801-8
Ultra Librarian 3D Model	Ultra Librarian 1-2204801-8 CAD Model

Description

The TE Connectivity AMP Connectors ELCON Micro series is a versatile range of rectangular connectors designed for board to cable/wire applications.

Header Type: Male pin
Pitch: 0.118" (3.00mm)
Number of Positions: 4
Design: Shrouded with 4 walls
Mounting Type: Through-hole
Contact Material: Copper alloy
Contact Finish: Tin
Voltage Rating: 600V
Product Status: Active
Series: ELCON Micro
Manufacturer: TE Connectivity AMP Connectors
