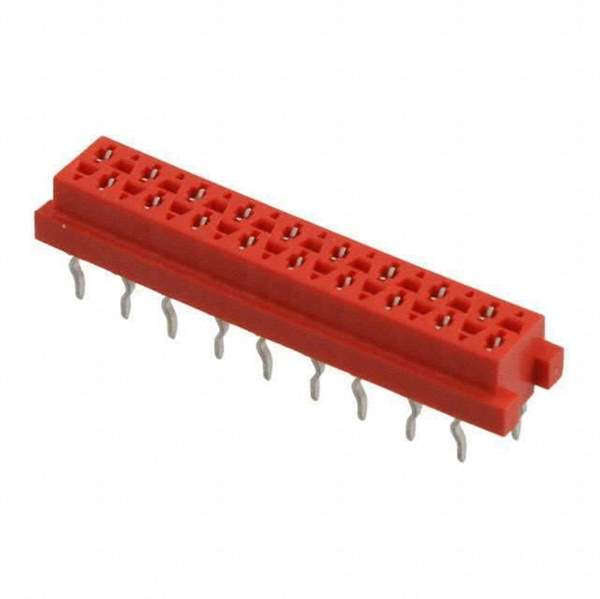

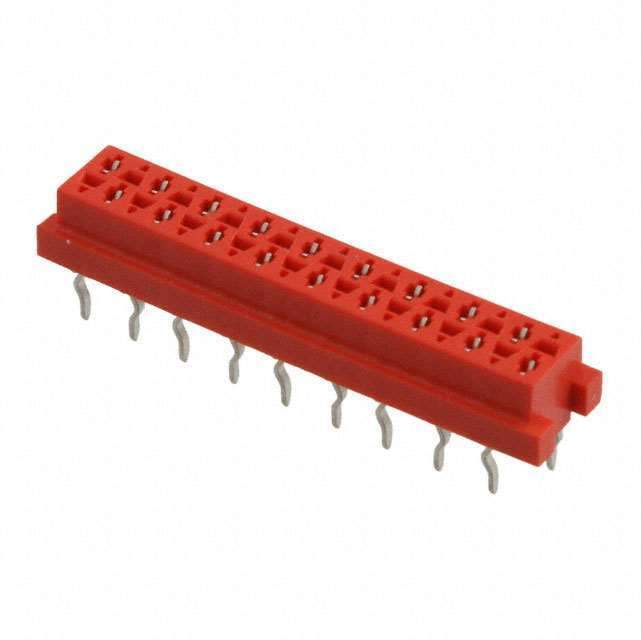

Same model may have multiple batches, images only for reference.

1-215079-8

Name: 1-215079-8
Brand: TE Connectivity
SKU: 1333288
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1-215079-8
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 18POS 0.1 TIN PCB / 18 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	18
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.157" (4.00mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	100VDC
Applications	Automotive, General Purpose
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material	Phosphor Bronze
Base Product Number	215079
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	A110873TR,-1-215079-8-LSI,A110873CT,-1-215079-8-SI,1-215079-8-ND,2266-1-215079-8
Standard Package	5,000
Win Source Part Number	1333288-1-215079-8
Ultra Librarian 3D Model	Ultra Librarian 1-215079-8 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1333288-1-215079-8 is a connector that is used in automotive and general-purpose applications.

Package: Variety of Packages
Standard Package: 5,000
Supply and Demand Status: Sufficient
