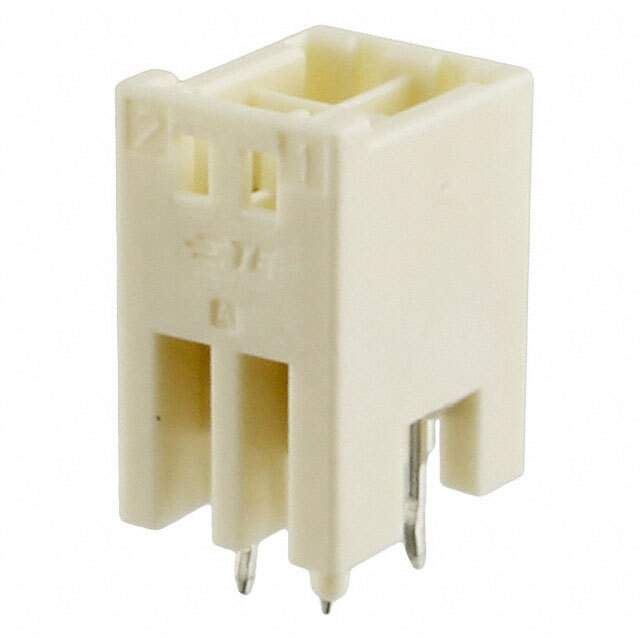

1-1971906-2 Real Image
Same model may have multiple batches, images only for reference.

1-1971906-2

Part No 1-1971906-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 3.3MM / Connector Header Through Hole 4 position 0.130" (3.30mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.130" (3.30mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.205" (5.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.561" (14.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose, Industrial
Base Product Number 1971906
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1-1971906-2-SI,A115834,2266-1-1971906-2
Standard Package 425
Win Source Part Number 1332351-1-1971906-2
Ultra Librarian 3D Model Ultra Librarian 1-1971906-2 CAD Model

Description

This electronic component is a header connector manufactured by TE Connectivity AMP Connectors.

  • Rows: 2
  • Positions: 4
  • Features: Board Guide
  • Contact Type: Male Pin
  • Contact Style: Kinked Pin
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Contact Material: Brass
  • Voltage Rating: 250VAC
  • Shrouding: Shrouded - 4 Wall
  • Insulation Color: Natural
  • Pitch (Mating): 0.130" (3.30mm)
  • Contact Finish: Tin
  • Standard Package: 425
  • Mounting: Through Hole
  • Applications: General Purpose, Industrial
  • Temperature Range: -30°C ~ 105°C
  • MSL Level: 1 (Unlimited)
  • RoHS Status: ROHS3 Compliant
