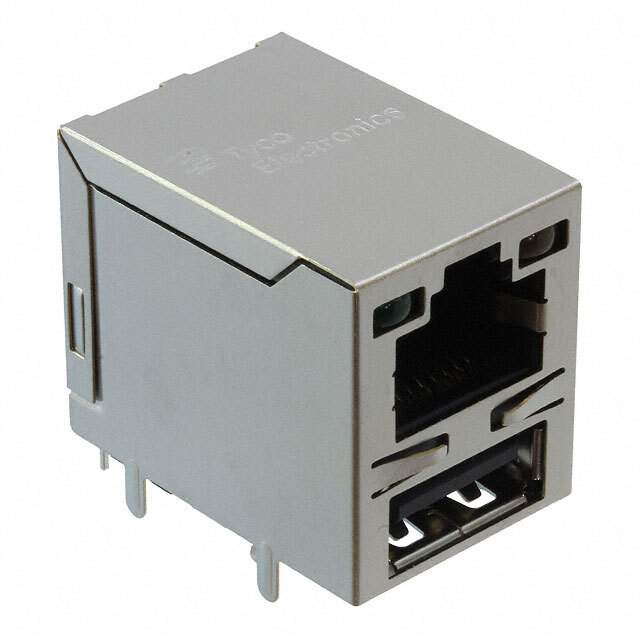

Same model may have multiple batches, images only for reference.

1-1909119-4

Name: 1-1909119-4
Brand: TE Connectivity
SKU: 766615
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1-1909119-4
Manufacturer	TE Connectivity
Catalog	Modular Connectors
Description	CONN MOD JACK 8P8C R/A SHIELDED
Datasheet	1-1909119-4 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tray
Connector Type	Jack with USB A
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	1
Number of Rows	2
Mounting Style	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Shielding	Shielded
Ratings	Cat3
Features	Board Lock
LED Color	Green - Yellow
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	Flash
Housing Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Operating Temperature Range	-40°C ~ 85°C
Win Source Part Number	766615-1-1909119-4
Popularity	Medium
Supply and Demand Status	Limited
Family Name	1909119
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	Taiwan
Halogen Free	Not Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 1-1909119-4 CAD Model

Alternative Products

Description

TE Connectivity AMP Connectors brings you the 766615-1-1909119-4, a shielded jack USB A connector with board lock feature.

Contacts: 8p8c (RJ45, Ethernet)
Rows: Two
Angle: Right Angle (90°)
Finish: Flash Gold
Contact Material: Phosphor Bronze
Housing Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Rating: cat3
LED Color: Green-Yellow
Mounting: Through Hole
Termination: Solder
Operating Temperature: -40°C to 85°C
Supply and Demand Status: Limited
EOL Date: 2028
