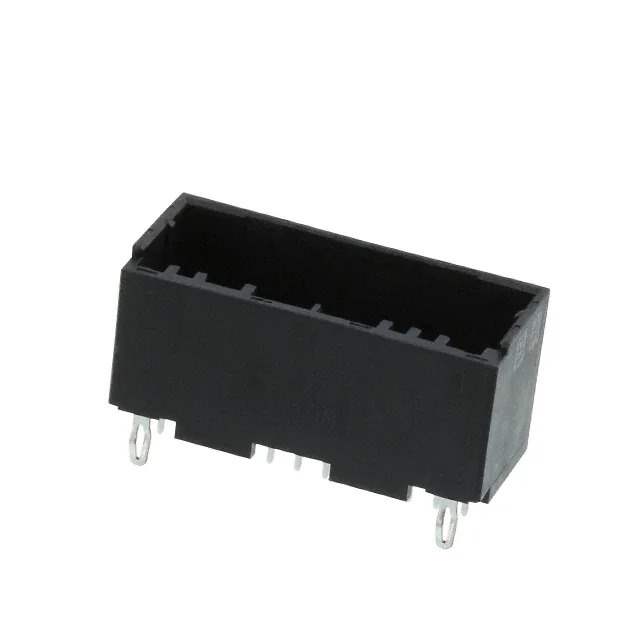

Same model may have multiple batches, images only for reference.

1-1871315-2

Name: 1-1871315-2
Brand: TE Connectivity
SKU: 853779
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-1871315-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 24POS 2MM / Connector Header Through Hole 24 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	Dynamic D-1100
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	24
Number of Rows	2
Row Spacing - Mating	0.130" (3.30mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.490" (12.44mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Polyester, Glass Filled
Features	Board Lock
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	125V
Applications	General Purpose, Industrial
Base Product Number	1871315
Standard Package	17 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853779-1-1871315-2
Ultra Librarian 3D Model	Ultra Librarian 1-1871315-2 CAD Model

Description

The 853779-1-1871315-2 is a male pin header connector from the Dynamic D-1100 series. TE Connectivity is the manufacturer.

Series: Dynamic D-1100
Positions: 24
Rows: Dual
Feature: Board Lock
Contact Material: Copper Alloy
Pitch: 0.079" (2.00mm)
Operating Temperature: -55°C to 105°C
