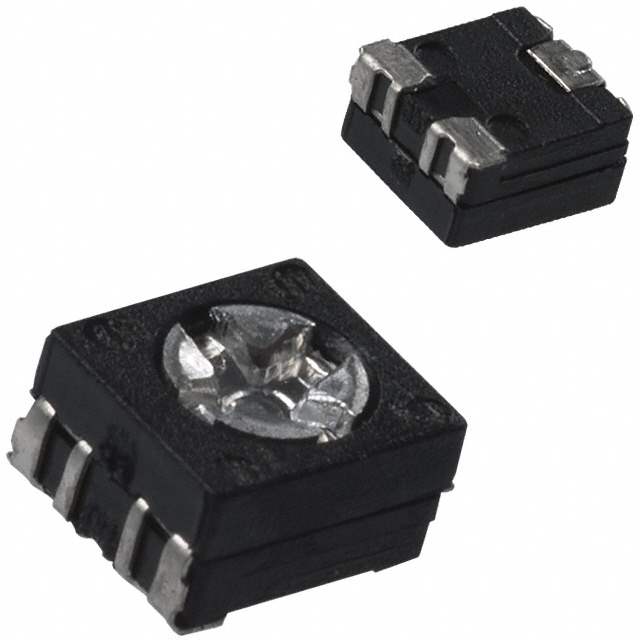

EVN-5ESX50B13

Part No EVN-5ESX50B13
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 0.05W SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Resistance (Ohms) 1k
Power (Watts) 0.05W, 1/20W
Tolerance ±30%
Temperature Coefficient ±500ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.142" x 0.122" Face x 0.071" H (3.60mm x 3.10mm x 1.80mm)
Win Source Part Number 122933-EVN-5ESX50B13
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EVN-5ESX50B13 CAD Model

Description

Description

The EVN-5ESX50B13 is a versatile potentiometer that provides high-precision control in various electrical systems. It’s designed for a broad spectrum of applications where reliability and fine-tuning are paramount.

Features and Benefits

  • Exceptional precision in resistance adjustment
  • Compact and robust form factor
  • Stable and smooth performance
  • Temperature resistance for various conditions

Applications

  • Fine-tuning audio circuits
  • Custom control interfaces
  • DIY electrical and electronic projects
  • Variable fan and motor speed controllers

Additional Details

The EVN-5ESX50B13 is engineered for consistency and dependability, ensuring it can be integrated seamlessly into complex electronic systems.
