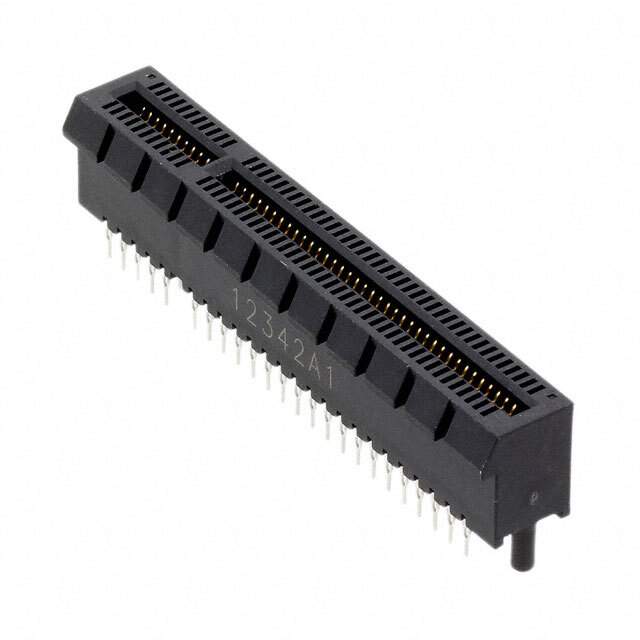

1-1871058-3 Real Image
Same model may have multiple batches, images only for reference.

1-1871058-3

Part No 1-1871058-3
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FEMALE 98POS 0.039
Datasheet
1-1871058-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Card Type PCI Express
Gender Female
Number of Positions 98
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Features Board Guide, Locking Ramp
Mounting Style Through Hole
Termination Press-Fit
Contact Material Copper Alloy
Contact Finish Gold or Gold-Palladium
Contact Finish Thickness 30μin (0.76μm)
Color Black
Operating Temperature Range -55°C ~ 85°C
Material - Insulation Thermoplastic
Read Out Dual
Win Source Part Number 760707-1-1871058-3
Popularity Medium
Supply and Demand Status Limited
Family Name 1871058
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 1-1871058-3 CAD Model

Description

The TE Connectivity AMP Connectors 760707-1-1871058-3 is a female PCI Express connector from.

  • Pitch: 0.039" (1.00mm)
  • Positions: 98
  • Features: Board Guide, Locking Ramp
  • Supply and Demand Status: Limited
