Same model may have multiple batches, images only for reference.

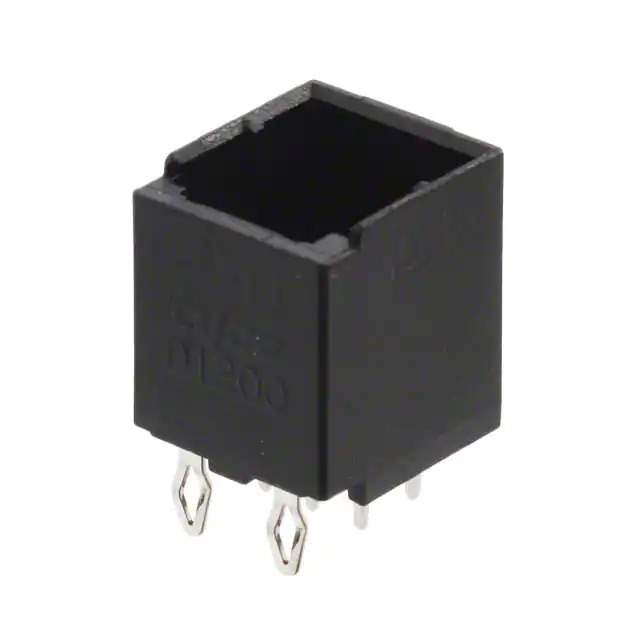

1-1827875-3 Real Image
Same model may have multiple batches, images only for reference.

1-1827875-3

Part No 1-1827875-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.5MM / Connector Header Through Hole 6 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Dynamic D-1200
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.130" (3.30mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.490" (12.44mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications General Purpose, Industrial
Base Product Number 1827875
Standard Package 46 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853772-1-1827875-3
Ultra Librarian 3D Model Ultra Librarian 1-1827875-3 CAD Model

Description

The TE Connectivity rectangular connector, part number 853772-1-1827875-3, is a male header with a board lock feature. TE Connectivity is the manufacturer.

  • Series: Dynamic D-1200
  • Connector Type: Header, Male
  • Positions: 6
  • Connection Style: Board-to-Board or Cable
  • Termination Style: Solder
  • Fastening: Detent Lock
  • Package Form: Tube
  • Standard Package: 46 pieces
  • Contact Material: Copper Alloy
  • Contact Finish on Mating: Gold
  • Voltage Rating: 250V
  • Current Rating: 5A
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
