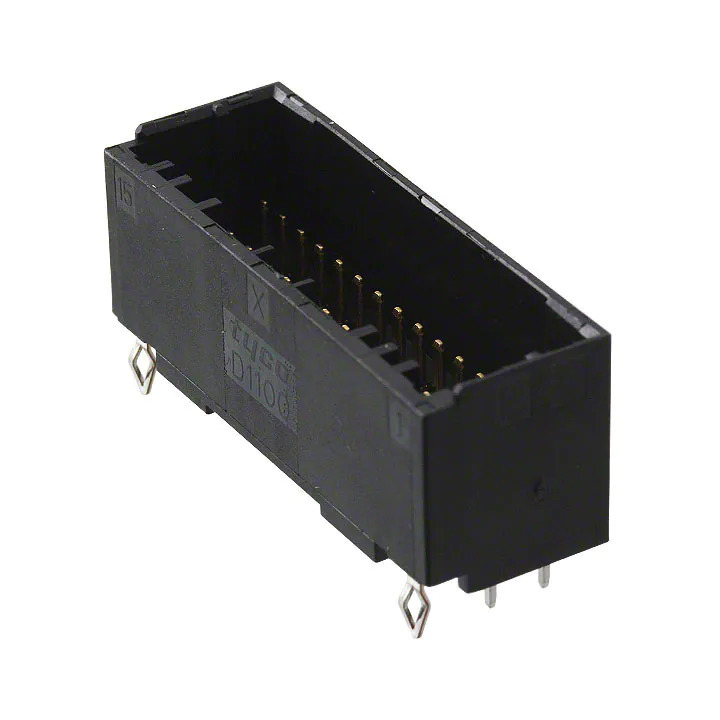

1-1827872-5 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-1100
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.130" (3.30mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length -
Insulation Height 0.490" (12.44mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 125V
Mated Stacking Heights -
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications General Purpose, Industrial
Base Product Number 1827872
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1355331-1-1827872-5
Ultra Librarian 3D Model Ultra Librarian 1-1827872-5 CAD Model

Description

The Dynamic D-1100 series is a versatile and reliable header connector designed for board-to-board or cable connections.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: Dynamic D-1100
  • Pitch: 0.079" (2.00mm)
  • Number of Positions: 30
  • Number of Rows: 2
  • Application: General Purpose, Industrial
  • Contact Type: Male Pin
  • Mounting Type: Through Hole
  • Fastening Type: Detent Lock
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Insulation Material: Thermoplastic, Polyester, Glass Filled
  • Voltage Rating: 125V
  • Current Rating: 3A
