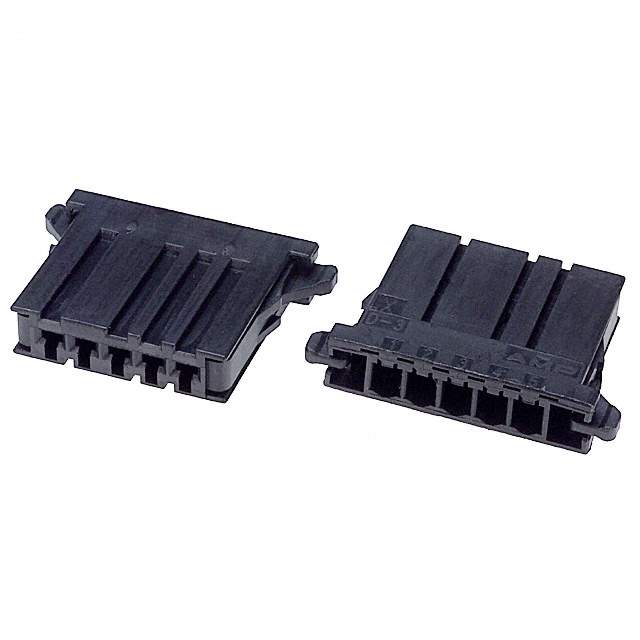

The 1-178288-5 is a rectangular connector manufactured by TE Connectivity. These connectors are commonly used for board-to-board or wire-to-board connections. They provide a reliable and robust solution for transmitting power and signals in various electronic systems. The design allows for efficient assembly and secure mating.

Applications:

• Industrial control systems
• Data communication equipment
• Automotive electronics
• Medical instrumentation
• Aerospace applications

Features:

• High contact density
• Polarization features to prevent mis-mating
• Robust housing design
• Available in various sizes and configurations
• RoHS compliant materials

Benefits:

• Provides reliable electrical connection
• Facilitates easy assembly and disassembly
• Offers design flexibility
• Ensures long-term performance
• Meets industry standards for safety and environmental compliance

Technical Specifications:

Typical specifications for this type of connector include a current rating of 1-3A per contact and a voltage rating of 250V. The housing material is often made of high-temperature thermoplastic. Contact plating options usually include tin or gold. The operating temperature range is typically from -40°C to +105°C. Mating cycles usually greater than 50.

This TE Connectivity connector ensures a reliable and robust connection. Its polarization features and housing design prevent accidental mis-mating and provide protection against environmental factors. The high contact density allows for efficient use of space, making it suitable for compact electronic designs. The use of RoHS compliant materials ensures environmental compliance.
