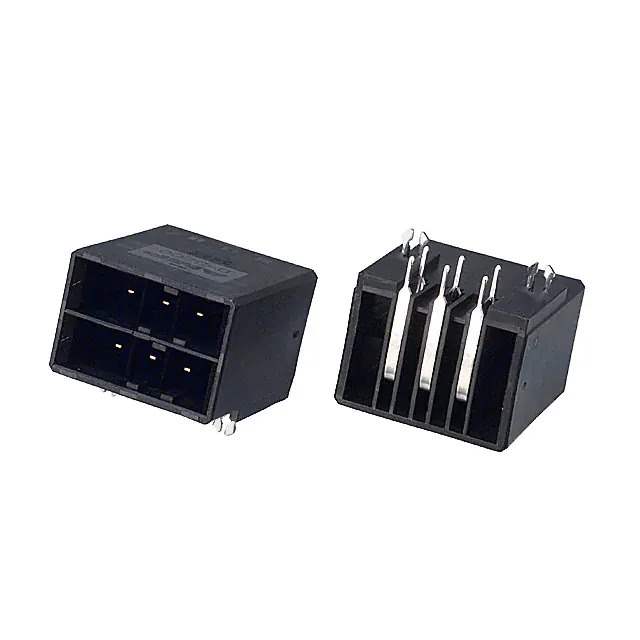

1-178139-2 Real Image
Same model may have multiple batches, images only for reference.

1-178139-2

Part No 1-178139-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 5.08MM / Connector Header Through Hole, Right Angle 6 position 0.200" (5.08mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Dynamic D-3200
Package Bulk
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.200" (5.08mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.300" (7.62mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.668" (16.97mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 600V
Applications General Purpose, Industrial
Base Product Number 178139
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853767-1-178139-2
Ultra Librarian 3D Model Ultra Librarian 1-178139-2 CAD Model

Description

The Dynamic D-3200 series male pin headers are versatile connectors designed for board-to-board or cable connections in general purpose and industrial applications. TE Connectivity produces this series.

  • Series: Dynamic D-3200
  • Number of Positions: 6
  • Pitch: 0.200" (5.08mm)
  • Fastening Types: Board Lock, Detent Lock
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Voltage Rating: 600V
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
  • Package: Bulk
  • Standard Package: 20 pcs
