Same model may have multiple batches, images only for reference.

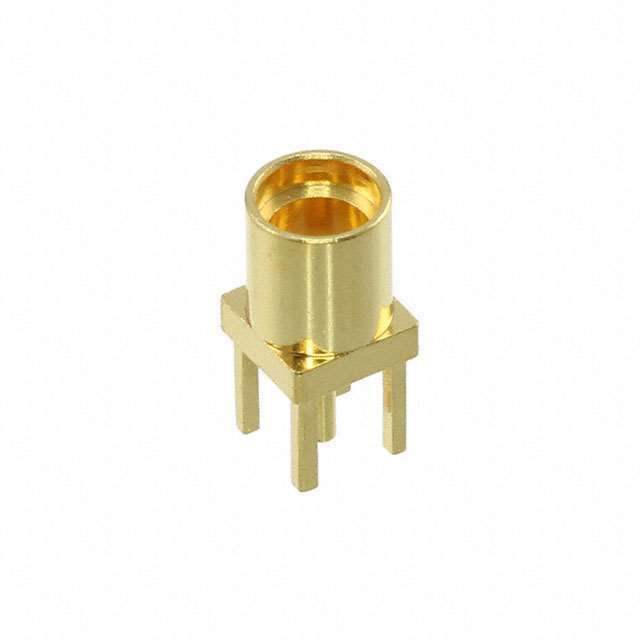

1-1634009-0 Real Image
Same model may have multiple batches, images only for reference.

1-1634009-0

Part No 1-1634009-0
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MMCX RCPT STR 50 OHM PCB / MMCX Connector Receptacle, Female Socket 50Ohm Through Hole Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Style MMCX
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Through Hole
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 335 V
Mating Cycles 500
Base Product Number 1634009
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 1-1634009-0-ND,116340090,A101965
Standard Package 100
Win Source Part Number 1332001-1-1634009-0
Ultra Librarian 3D Model Ultra Librarian 1-1634009-0 CAD Model

Description

The TE Connectivity AMP Connectors 1332001-1-1634009-0 is an MMCX coaxial connector assembly with a receptacle, female socket type.

  • Connector Type: MMCX Coaxial Connector Assembly
  • Connector Type: Receptacle, Female Socket
  • Voltage Rating: 335V
  • Frequency Range: Up to 6GHz
  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Housing Color: Gold
  • Body Material: Brass
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Standard Package: 100
  • Mounting: Through Hole
