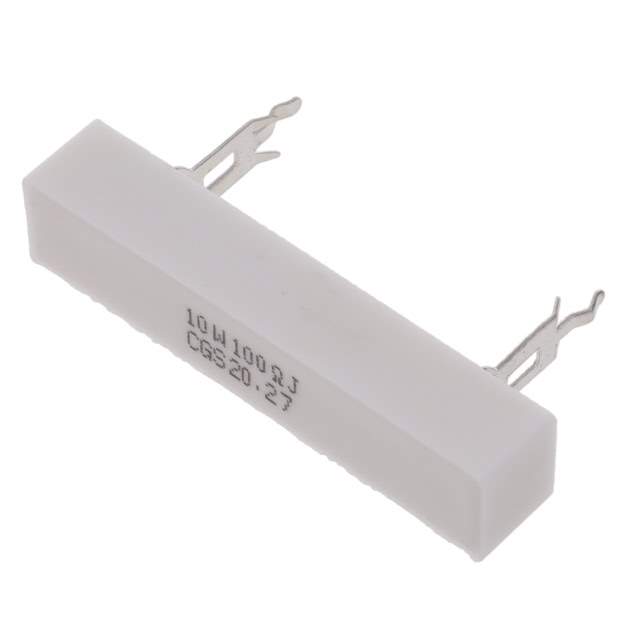

1-1623797-1 Real Image
Same model may have multiple batches, images only for reference.

1-1623797-1

Part No 1-1623797-1
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description Res Wirewound 100 Ohm 5% 10W ±300ppm/°C Ceramic RDL Thru-Hole Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Ceramic
Composition Power resistor, Wirewound
Depth 10 mm
ELV Compliant
Height 20.5 mm
Lead Pitch 32 mm
Length 48 mm
Max Operating Temperature 250 °C
Military Standard Not
Min Operating Temperature -55 °C
Mount Pluggable, Through Hole
Number of Resistors 1
Number of Terminations 2
Power Rating 10 W
Radiation Hardening No
Resistance 100 Ω
RoHS Compliant
Temperature Coefficient 300 ppm/°C
Termination Radial
Tolerance 5 %
Win Source Part Number 1128577-1-1623797-1
Categories Through Hole Resistors
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1-1623797-1 CAD Model

Description

This TE Connectivity power resistor is a wirewound component that is designed to provide a resistance of 100 Ω.

  • Resistance: 100 Ω
  • Power Rating: 10 W
  • Termination: radial
  • Length: 48 mm
  • Height: 20.5 mm
  • Depth: 10 mm
  • Tolerance: 5%
  • Temperature Coefficient: 300 ppm/°C
  • RoHS: compliant
  • Temperature Range: -55 °C to 250 °C
  • Case/Package: ceramic
  • Feature: pluggable
