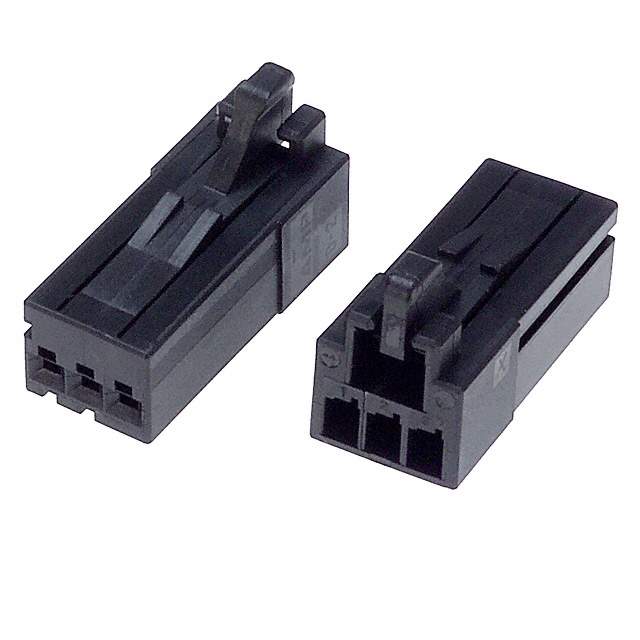

1-1318120-3 Real Image
Same model may have multiple batches, images only for reference.

1-1318120-3

Part No 1-1318120-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RECEPT 2.5 3POS KEY-X
Datasheet
1-1318120-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Dynamic D-2100
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Features Polarizing Key
Note Contacts Not Included
Win Source Part Number 760225-1-1318120-3
Popularity Medium
Supply and Demand Status Limited
Family Name 1318120
Introduction Date July 01, 2004
ECCN EAR99
Country of Origin Japan
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1-1318120-3 CAD Model

Description

The TE Connectivity AMP Connectors 760225-1-1318120-3 is a dynamic D-2100 series connector.

  • Positions: 3
  • Pitch: 0.098" (2.50mm)
  • Color: Black
  • Features: Polarizing Key
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Mounting Type: Free Hanging (in-line)
  • Fastening Type: Latch Lock
  • Termination Type: Crimp
  • Contacts Included: No
