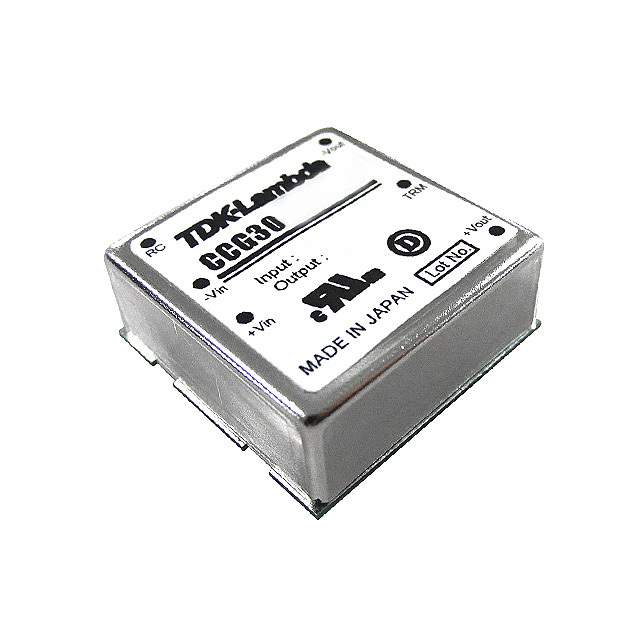

CCG30-24-15S Real Image
Same model may have multiple batches, images only for reference.

CCG30-24-15S

Part No CCG30-24-15S
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 30W / Isolated Module DC DC Converter 1 Output 15V 2A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CCG30 (30W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Current - Output (Max) 2A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Base Product Number CCG30
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1336894-CCG30-24-15S
Ultra Librarian 3D Model Ultra Librarian CCG30-24-15S CAD Model

Description

The TDK-Lambda Americas Inc CCG30-24-15S is a power supply board mount DC-DC converter manufactured by TDK-Lambda Americas Inc.

  • Series: CCG30
  • Power: 30W
  • Type: Isolated module
  • Features: Remote on/off, OCP, and OVP
  • Package: Tray package
  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Application: ITE (commercial) applications
  • Voltage Isolation: 1.5kV
  • Number of Outputs: 1
  • Maximum Output Current: 2A
  • Input Voltage Range: from 9V to 36V
  • Output Voltage: 15V
  • Efficiency: 89%
  • Mounting Type: through a hole
