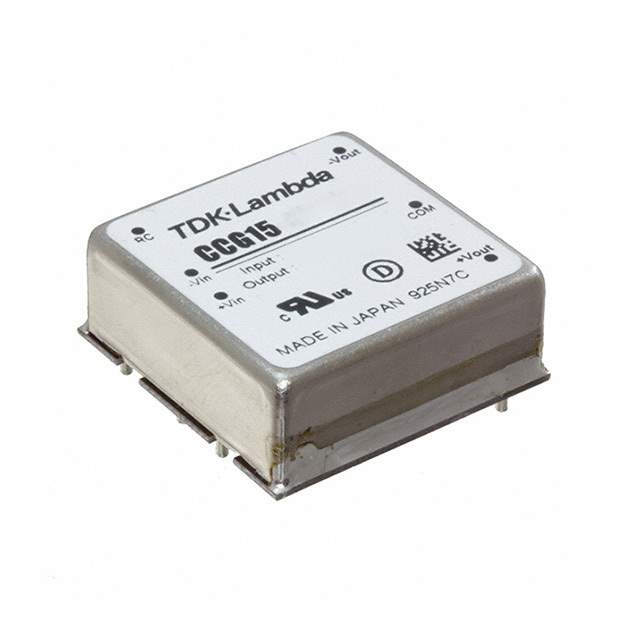

CCG15-48-12S Real Image
Same model may have multiple batches, images only for reference.

CCG15-48-12S

Part No CCG15-48-12S
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 15W / Isolated Module DC DC Converter 1 Output 12V 1.3A 18V - 76V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CCG15 (15W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 76V
Voltage - Output 1 12V
Current - Output (Max) 1.3A
Power (Watts) 15 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Base Product Number CCG15
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1338900-CCG15-48-12S
Ultra Librarian 3D Model Ultra Librarian CCG15-48-12S CAD Model

Description

The TDK-Lambda Americas Inc CCG15-48-12S is a 15W power supply that is board mounted DC DC converter.

  • Type: Isolated Module
  • Package/Case: 6-DIP Module
  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Application: ITE (Commercial)
  • Features: Remote On/Off, OCP, OVP
  • Control Feature: Enable, Active Low
  • Voltage Isolation: 1.5 kV
  • Output: Single
  • Maximum Output Current: 1.3A
  • Output Voltage: 12V
  • Voltage Input Range: 18V to 76V
  • Efficiency: 88%
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 85°C
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8504.40.9580
