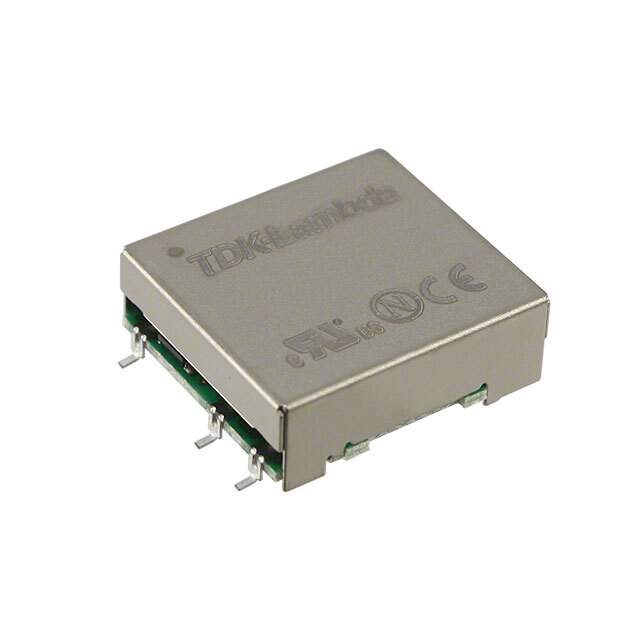

Same model may have multiple batches, images only for reference.

CC6-0505SR-E

Name: CC6-0505SR-E
Brand: TDK-Lambda Americas Inc.
SKU: 1335118
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CC6-0505SR-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 5W / Isolated Module DC DC Converter 1 Output 5V 1A 4.5V - 9V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	TDK-Lambda Americas Inc
Packaging	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	5V
Current - Output (Max)	1A
Power (Watts)	5 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting	Surface Mount
Case / Package	7-SMD Module
Size / Dimension	0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm)
Control Features	Enable, Active Low
Base Product Number	CC6-0505
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	CC6-0505SR-E-ND,445-3289,CC60505SRE
Standard Package	10
Win Source Part Number	1335118-CC6-0505SR-E
Ultra Librarian 3D Model	Ultra Librarian CC6-0505SR-E CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc CC6-0505SR-E is an isolated module DC-DC converter designed for ITE (Commercial) applications.

Applications: ITE (Commercial)
Power Rating: 5W
Voltage Isolation: 500V
Outputs: One output
Maximum Output Current: 1A
Output Voltage: 5V
Input Voltage Range: 4.5V to 9V
Mounting: Surface-mounted
Size: 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm)
Package: 7-SMD module package
ECCN: EAR99
MSL Level: 1 (Unlimited)
REACH Status: Unaffected
