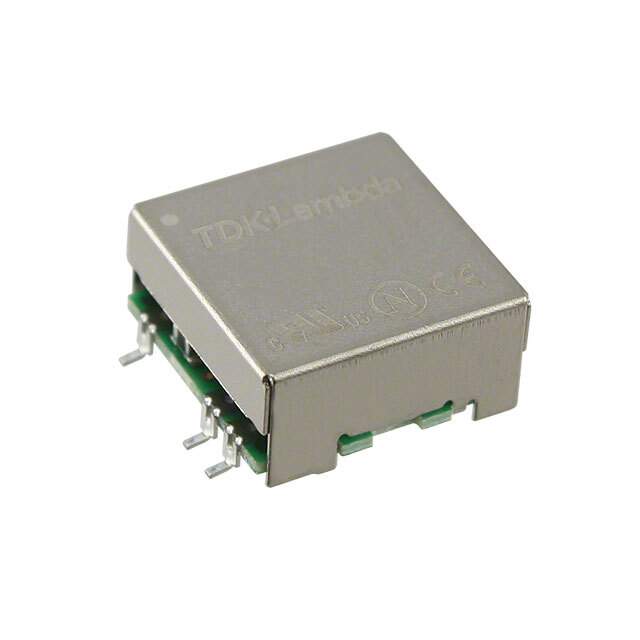

Same model may have multiple batches, images only for reference.

CC1R5-2412SR-E

Name: CC1R5-2412SR-E
Brand: TDK-Lambda Americas Inc.
SKU: 1348750
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CC1R5-2412SR-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12-15V 1W / Isolated Module DC DC Converter 1 Output 12 ~ 15V 125mA 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CC-E (1.5W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12 ~ 15V
Current - Output (Max)	125mA
Power (Watts)	1 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	7-SMD Module
Size / Dimension	0.65" L x 0.65" W x 0.35" H (16.5mm x 16.6mm x 8.8mm)
Control Features	Enable, Active Low
Base Product Number	CC1R5
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1348750-CC1R5-2412SR-E
Ultra Librarian 3D Model	Ultra Librarian CC1R5-2412SR-E CAD Model

Alternative Products

Description

The 1348750-CC1R5-2412SR-E is a DC-DC converter module from the CC-E (1.5W) series by TDK-Lambda Americas Inc.

Series: CC-E (1.5W)
Type: Isolated
Power: 1 W
Voltage Isolation: 500 V
Maximum Output Current: 125mA
Input Voltage Range: 18V to 36V
Voltage Output Range: 12V to 15V
Package: Surface Mount 7-SMD Module
Temperature Range: -40°C to 85°C
Application: ITE (Commercial)
Control Features: Enable, Active Low
Standard Package: 10
