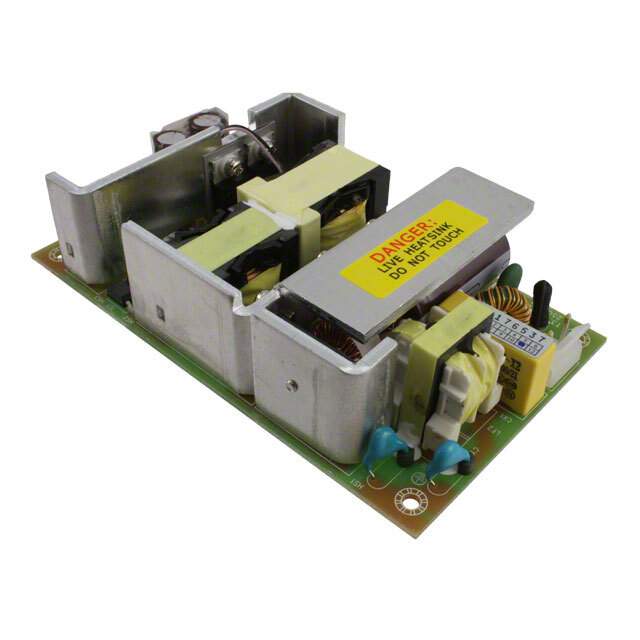

SCS120PW48 Real Image
Same model may have multiple batches, images only for reference.

SCS120PW48

Part No SCS120PW48
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 48V 120W / AC/DC Power Supply Single-OUT 48V 2.5A 120W 8-Pin
Datasheet
SCS120PW48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - External/Internal (Off-Board)
Manufacturer TDK-Lambda Americas Inc.
Series SC120
Type Open Frame
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 48V
Current - Output (Maximum) 2.5A
Power (Watts) 120W
Applications ITE (Commercial)
Voltage - Isolation 3kV (3000V)
Efficiency 85%
Operating Temperature Range 0°C ~ 60°C (With Derating)
Features Adjustable Output, PFC
Mounting Chassis Mount
Dimension 5.00" L x 3.00" W x 1.27" H (127.0mm x 76.2mm x 32.3mm)
Approvals CE
Win Source Part Number 794007-SCS120PW48
Popularity Medium
Supply and Demand Status Sufficient
Family Name SCS120PW
Introduction Date August 11, 2005
ECCN EAR99
Country of Origin China, Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SCS120PW48 CAD Model

Description

The SC120 series power supply from TDK-Lambda Americas Inc. is an open frame type with an adjustable output and PFC.

  • Temperature Range: 0°C to 60°C (with derating)
  • Power Output: 120W
  • Voltage Input: 90-264VAC
  • Isolation Voltage: 3kV
  • Efficiency: 85%
  • Mounting Type: Chassis Mount
  • Applications: ITE (Commercial)
  • Approvals: CE
  • Dimensions: 5.00" L x 3.00" W x 1.27" H (127.0mm x 76.2mm x 32.3mm)
  • Supply and Demand Status: Sufficient
  • Estimated EOL Date: 2027
