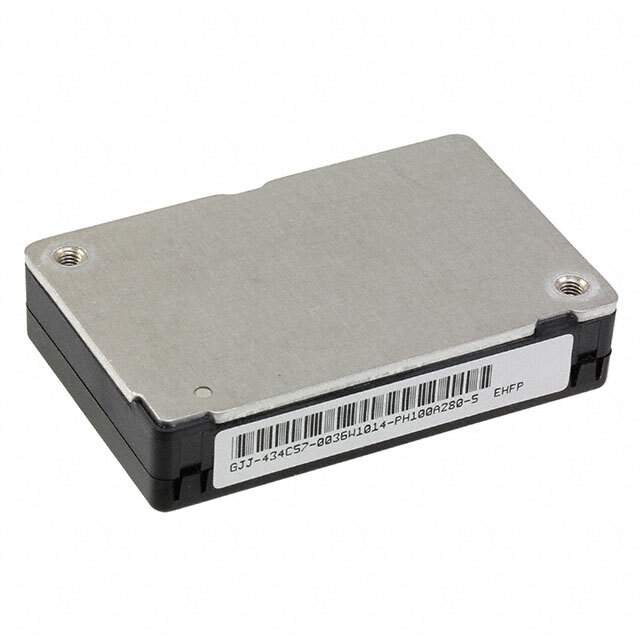

Same model may have multiple batches, images only for reference.
PH75A280-12 Real Image
Same model may have multiple batches, images only for reference.

PH75A280-12

Part No PH75A280-12
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 75W / Isolated Module DC DC Converter 1 Output 12V 6.3A 200V - 425V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series PH-A280 (300W)
Package Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 200V
Voltage - Input (Max) 425V
Voltage - Output 1 12V
Current - Output (Max) 6.3A
Power (Watts) 75 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/4 Brick
Dimension 2.30" L x 1.46" W x 0.50" H (58.3mm x 37.2mm x 12.7mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names PH75A28012,PH75A28012-ND,PH75A280-12,285-PH75A280-12
Standard Package 1
Win Source Part Number 1031241-PH75A280-12
Ultra Librarian 3D Model Ultra Librarian PH75A280-12 CAD Model

Description

The TDK-Lambda Americas Inc PH75A280-12 is an isolated module DC-DC converter that is designed to provide a power output of 75 W. This converter has a voltage isolation of 3 kV and a maximum output current of 6.3A. The PH75A280-12 has a voltage input range of 200V to 425V and is rated for an operating temperature range of -40°C to 85°C. This converter is classified under the Power Supplies - Board Mount>DC DC Converters category and has an ECCN of EAR99. The PH-A280 (300W) series is known for its high-quality performance and reliability. The PH75A280-12 is a popular choice due to its excellent performance and reliability.
