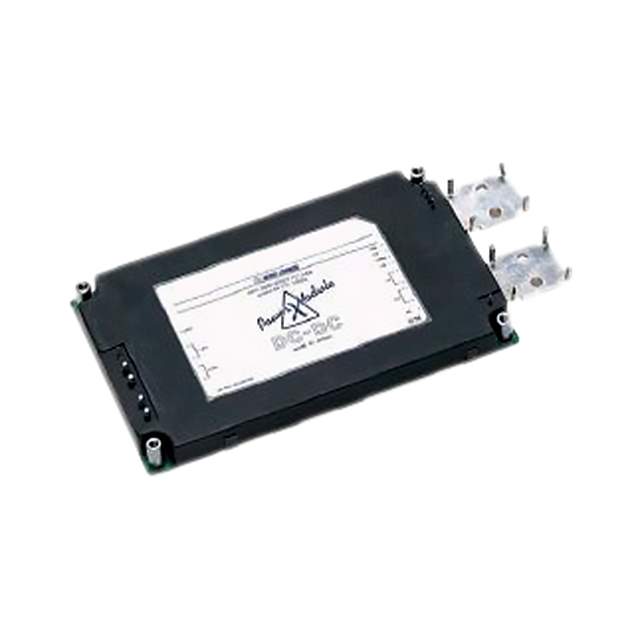

Same model may have multiple batches, images only for reference.

PH600S280-24

Name: PH600S280-24
Brand: TDK-Lambda Americas Inc.
SKU: 273784
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PH600S280-24
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERT DC-DC 24V 600W 25A
Datasheet	PH600S280-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	TDK-Lambda-Americas-Inc.
Series	PH-S
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	200V
Voltage - Input (Max)	400V
Voltage - Output 1	24V
Current - Output (Max)	25A
Power (Watts) - Manufacture Series	600W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Mounting Style	Through Hole
Package	Module
Size / Dimension	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Operating Temperature Range	-20°C ~ 85°C
Power (Watts) - Max	600W
Win Source Part Number	209888-PH600S280-24
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PH600S280-24 CAD Model

Alternative Products

Description

The TDK-Lambda-Americas-Inc. PH600S280-24 is a DC-DC converter module with an output of 24V and a maximum output current of 25A.

Output Voltage: 24V
Maximum Output Current: 25A
Power Rating: 600W
Application: ITE (Commercial)
Isolation: Isolated
Voltage Isolation: 3kV (3000V)
Protection: remote on/off, OCP, OTP, and OVP
Size: 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Mounting: through hole
