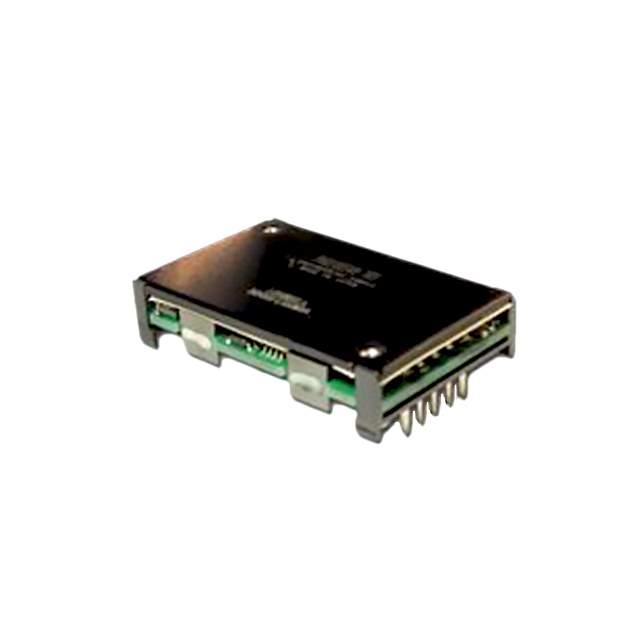

Same model may have multiple batches, images only for reference.

PAQ100S48-1R2/B

Get a Quote

Part No	PAQ100S48-1R2/B
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 1.2V 30W / Isolated Module DC DC Converter 1 Output 1.2V 25A 36V - 76V Input
Datasheet	PAQ100S48-1R2/B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	PAQ100
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	1.2V
Current - Output (Max)	25A
Power (Watts)	30 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/4 Brick
Dimension	2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Control Features	Enable, Active Low
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	285-PAQ100S48-1R2/B,PAQ100S48-1R2/B,PAQ100S481R2/B,PAQ100S481R2/B-ND
Standard Package	1
Win Source Part Number	1021371-PAQ100S48-1R2/B
Ultra Librarian 3D Model	Ultra Librarian PAQ100S48-1R2/B CAD Model

Alternative Products

Description

The TDK-Lambda Americas Inc PAQ100 series isolated module DC-DC converter is designed for use in ITE (commercial) applications.

Series: PAQ100
Application: ITE (commercial)
Power Rating: 30W
Voltage Isolation: 1.5 kV
Input Voltage Range: 36V to 76V
Output Voltage: 1.2V
Control Features: Enable, active low
Features: Remote on/off, OCP, and OVP
Mounting Type: Through-hole
Package: Bulk
Operating Temperature: -40°C ~ 100°C
