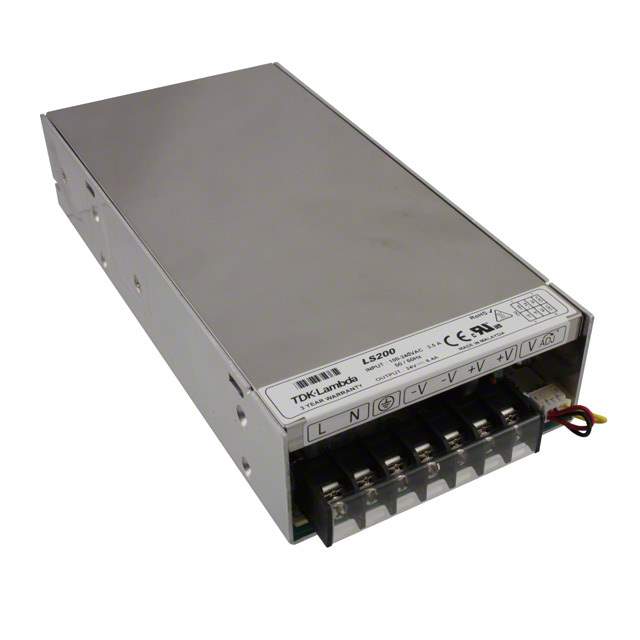

LS200-36 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series LS (200W)
Package Bulk
Type Enclosed
Number of Outputs 1
Voltage - Input 88 ~ 264 VAC
Voltage - Output 1 36V
Current - Output 1 5.6 A
Power (Watts) 200W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 85%
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Features Adjustable Output, DC Input Capable, Universal Input
Mounting Type Chassis Mount
Dimension 7.80" L x 3.90" W x 1.61" H (198.1mm x 99.1mm x 40.9mm)
Approval Agency CE
Base Product Number LS200
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.6018
Other Names 1043-LS200-36,LS20036
Standard Package 10
Win Source Part Number 1089782-LS200-36
Ultra Librarian 3D Model Ultra Librarian LS200-36 CAD Model

Description

The LS200-36 is a 200W enclosed AC/DC converter from TDK-Lambda Americas Inc's LS series.

  • Power: 200W
  • Features: Adjustable output, DC input capability, and universal input
  • Application: ITE (Commercial)
  • Voltage Input: 88 ~ 264 VAC
  • Voltage Isolation: 3 kV
  • Output Voltage: 36V
  • Efficiency: 85%
  • Minimum Load: No minimum load required
  • Mounting: Chassis mounting
  • Operating Temperature: -25°C ~ 70°C (with derating)
  • Dimensions: 7.80" L x 3.90" W x 1.61" H (198.1mm x 99.1mm x 40.9mm)
  • Packaging: Bulk
  • Standard Package: 10
  • Alternative parts: LS200-48, LS200-24, LS200-12, LS200-5, LS200-15, LXC150-0450SWLS-200-36, and LS20036
