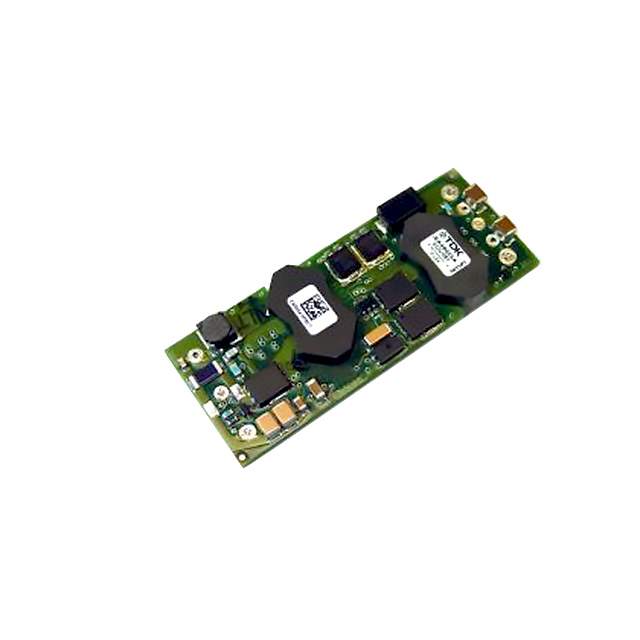

Same model may have multiple batches, images only for reference.

IEA48003A280V-001-R

Name: IEA48003A280V-001-R
Brand: TDK-Lambda Americas Inc.
SKU: 1021046
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IEA48003A280V-001-R
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 28V 75W / Isolated Module DC DC Converter 1 Output 28V 2.67A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	iEA (75W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	28V
Current - Output (Max)	2.67A
Power (Watts)	75 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 125°C
Efficiency	90%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/8 Brick
Dimension	2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm)
Control Features	Enable, Active Low
Base Product Number	IEA48003
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	-IEA48003A280V-001-R
Standard Package	80
Win Source Part Number	1021046-IEA48003A280V-001-R
Ultra Librarian 3D Model	Ultra Librarian IEA48003A280V-001-R CAD Model

Alternative Products

Description

The iEA48003A280V-001-R series from TDK-Lambda Americas Inc is a 75W isolated module DC-DC converter.

Power: 75W
Features: remote on/off, overcurrent protection, and overvoltage protection
Standard Package: 80
Mounting: through hole
Voltage Isolation: 1.5 kV
Maximum Output Current: 2.67A
Input Voltage Range: between 36V and 75V
Output Voltage: 28V
Package/Case: 8-DIP module, 1/8 brick with a dimension of 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm)
Efficiency: 90%
