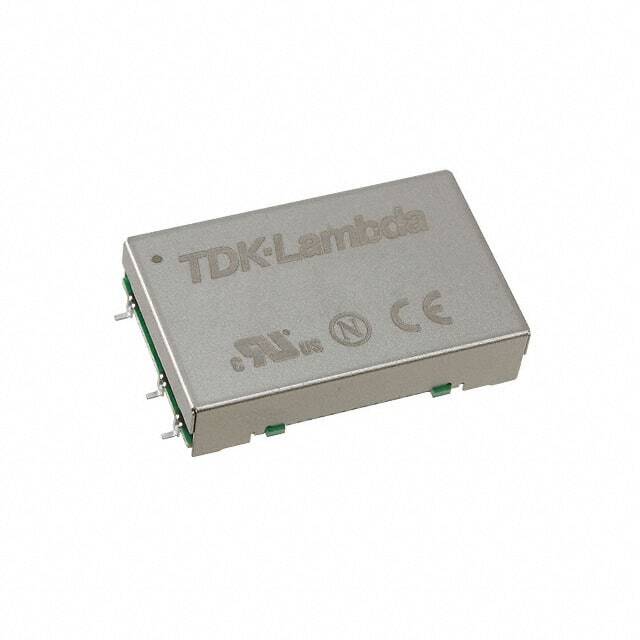

Same model may have multiple batches, images only for reference.

CC30-4815SRP-E

Get a Quote

Part No	CC30-4815SRP-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 30W / Isolated Module DC DC Converter 1 Output 15V 2A 36V - 76V Input
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	CC-P-E (30W)
Package	Tray
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	15V
Current - Output (Max)	2A
Power (Watts)	30 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	89%
Mounting Type	Surface Mount
Package / Case	20-SMD Module, 17 Leads
Size / Dimension	1.51" L x 1.32" W x 0.33" H (38.4mm x 33.5mm x 8.3mm)
Control Features	Enable, Active Low
Standard Package	10 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	866022-CC30-4815SRP-E
Ultra Librarian 3D Model	Ultra Librarian CC30-4815SRP-E CAD Model

Alternative Products

Description

The CC30-4815SRP-E is a 30W isolated module DC-DC converter from TDK-Lambda Americas Inc.

Series: CC-P-E
Application: ITE (commercial)
Size: 1.51" L x 1.32" W x 0.33" H (38.4mm x 33.5mm x 8.3mm)
Package: Tray
Power Rating: 30W
Output: Single
Maximum Current: 2A
Input Voltage Range: 36V to 76V
Output Voltage: 15V
Mounting: Surface Mountable in a 20-SMD module with 17 leads
Operating Temperature Range: -40°C to 85°C
Status: Obsolete
