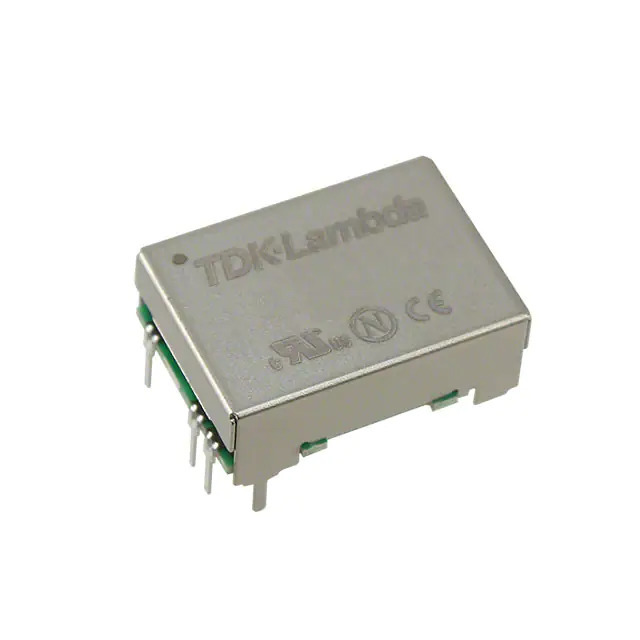

Same model may have multiple batches, images only for reference.

CC3-2412SF-E

Name: CC3-2412SF-E
Brand: TDK-Lambda Americas Inc.
SKU: 1355193
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CC3-2412SF-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12-15V 3W / Isolated Module DC DC Converter 1 Output 12 ~ 15V 250mA 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CC-E (3W)
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12 ~ 15V
Voltage - Output 2	-
Voltage - Output 3	-
Current - Output (Max)	250mA
Power (Watts)	3 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	-
Mounting Type	Through Hole
Package / Case	7-DIP Module
Size / Dimension	0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm)
Control Features	Enable, Active Low
Base Product Number	CC3-2412
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1355193-CC3-2412SF-E
Ultra Librarian 3D Model	Ultra Librarian CC3-2412SF-E CAD Model

Alternative Products

Description

The CC-E (3W) series is an isolated module, manufactured by TDK-Lambda Americas Inc.

Power: 3W
Input Voltage: 18V to 36V
Output Voltage: 12V to 15V
Number of Outputs: Single
Mounting Type: Through Hole
Package: 7-DIP
Status: Active
Features: Enable Control, High Voltage Isolation
