Same model may have multiple batches, images only for reference.

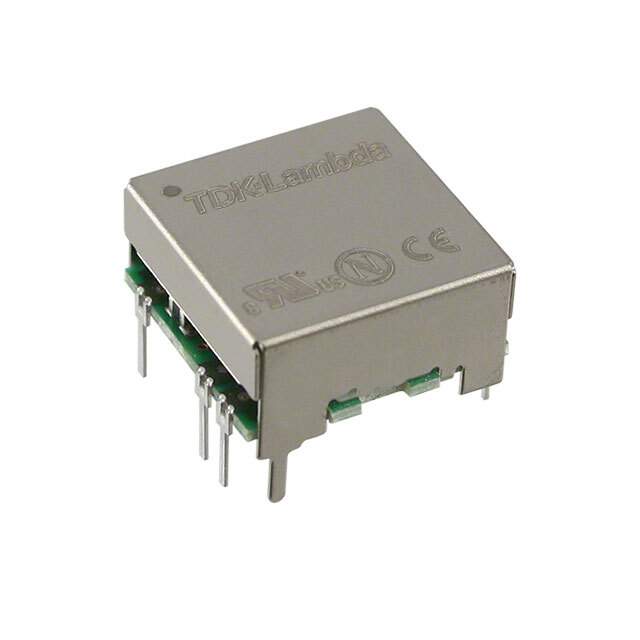

CC1R5-2412DF-E Real Image
Same model may have multiple batches, images only for reference.

CC1R5-2412DF-E

Part No CC1R5-2412DF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CNVRTR +/-12V TO +/-15V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 25 Weeks
Features Isolated Module DC DC Converter Output 12 ~ 15V -12 ~ -15V - - 60mA, 60mA 18V - 36V Input
Manufacturer TDK-Lambda Americas Inc.
Series CC-E (1.5W)
Package Bulk
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Package 7-DIP Module
Family Name CC1R5
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number CC1R52412DFE, 445-2458
Quantity per package 10
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866001-CC1R5-2412DF-E
Ultra Librarian 3D Model Ultra Librarian CC1R5-2412DF-E CAD Model

Description

The 866001-CC1R5-2412DF-E from TDK-Lambda Americas Inc. is an isolated module DC DC converter that has an output of 12 ~ 15V -12 ~ -15V - - 60mA, 60mA 18V - 36V input.

  • Series: CC-E (1.5W)
  • Operating Temperature Range: -40°C ~ 85°C
  • Package: Bulk
  • Package Type: 7-DIP module
  • Mounting: Through-Hole
  • Family: CC1R5
  • Product Category: Power Supplies - Board Mount
  • Supply and Demand Status: Limited
  • Quantity per Package: 10
  • MSL Level: Not Applicable
  • Estimated Production Lead Time: 25 weeks
  • HTSUS: 8504.40.9580
  • Other Part Number: CC1R52412DFE, 445-2458
  • Manufacturer: TDK-Lambda Americas Inc.
