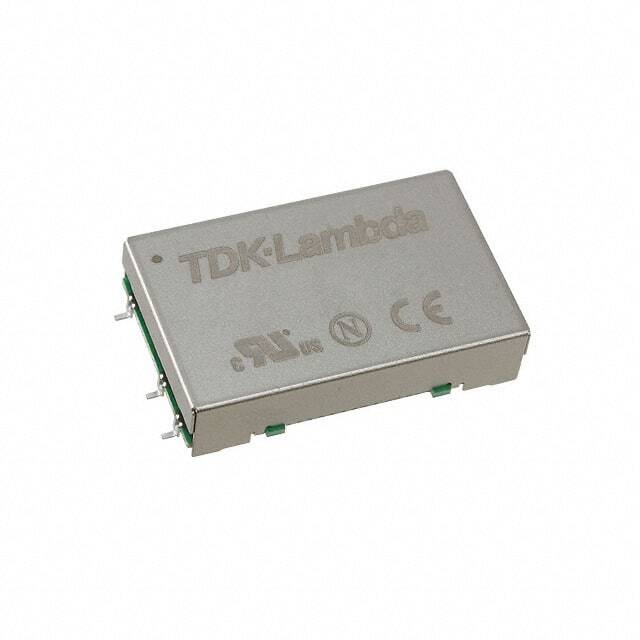

Same model may have multiple batches, images only for reference.
CC15-4805SRP-E
Same model may have multiple batches, images only for reference.

CC15-4805SRP-E

Part No CC15-4805SRP-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 15W / Isolated Module DC DC Converter 1 Output 5V 3A 36V - 76V Input
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc.
Series CC-P-E (15W)
Package Tray
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 5V
Current - Output (Max) 3A
Power (Watts) 15 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Type Surface Mount
Package / Case 20-SMD Module, 17 Leads
Size / Dimension 1.51" L x 1.17" W x 0.27" H (38.4mm x 29.6mm x 6.8mm)
Control Features Enable, Active Low
Standard Package 10 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 865996-CC15-4805SRP-E
Ultra Librarian 3D Model Ultra Librarian CC15-4805SRP-E CAD Model

Description

The CC15-4805SRP-E is a DC-DC converter from the CC-P-E (15W) series by TDK-Lambda Americas Inc.

  • Power Rating: 15W
  • Type: Isolated Module
  • Features: Remote On/Off, Overcurrent Protection (OCP), Overvoltage Protection (OVP)
  • Package: Tray
  • Size: 1.51" L x 1.17" W x 0.27" H (38.4mm x 29.6mm x 6.8mm)
  • Application: ITE (Commercial)
  • Package Quantity: 10 pcs
  • Output: Single
  • Output Voltage: 5V
  • Maximum Output Current: 3A
  • Input Voltage Range: 36V to 76V
  • Operating Temperature: -40°C to 85°C
  • Efficiency: 89%
  • Compliance: California Prop 65
