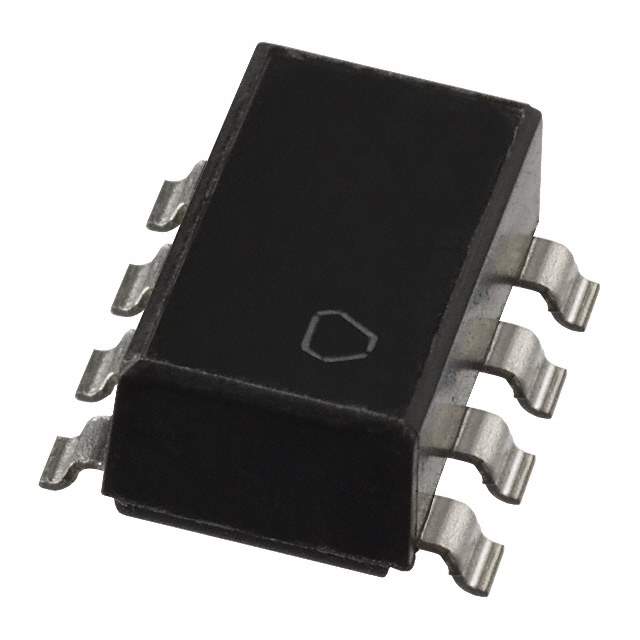

ZJYS51R5-4PT-01 Real Image ZJYS51R5-4PT-01 Real Image
ZJYS51R5-4PT-01 Real Image ZJYS51R5-4PT-01 Real Image
Same model may have multiple batches, images only for reference.

ZJYS51R5-4PT-01

Part No ZJYS51R5-4PT-01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 2A 4LN 200 OHM SMD
Datasheet
ZJYS51R5-4PT-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 200 Ohm @ 100MHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 120 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.200" (5.08mm)
Dimension Horizontal, 8 Gull Wing
Win Source Part Number 036729-ZJYS51R5-4PT-01
Family Name ZJYS
Introduction Date July 26, 2001
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ZJYS51R5-4PT-01 CAD Model

Description

The TDK Corporation ZJYS51R5-4PT-01 is a signal line filter with a voltage rating of 50V and a maximum current rating of 2A.

  • Lines: 4-line configuration
  • Impedance: 200 Ohm @ 100MHz
  • Mounting: Surface mount mounting
  • Package: Reel - TR
  • DC Resistance: 120 mOhm
  • Height: 0.200" (5.08mm)
  • Family: ZJYS family
  • Popularity: High popularity rating
  • Suitable for: Variety of applications, including automotive and industrial
