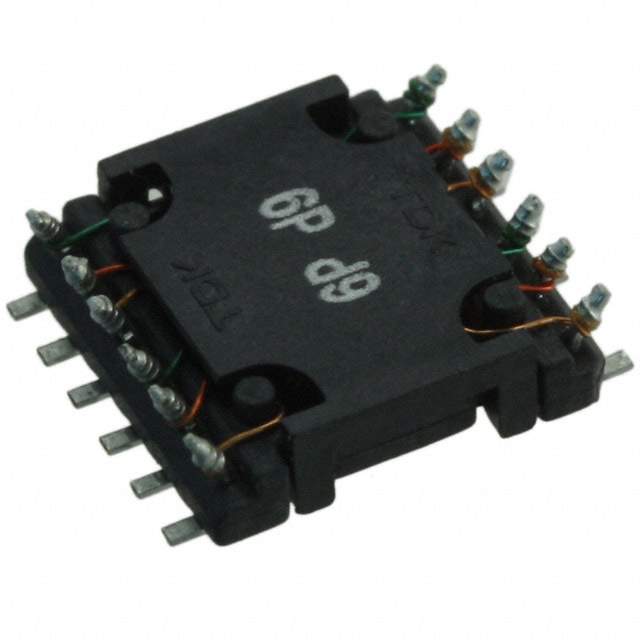

ZCYS51R5-M6PT-01 Real Image
Same model may have multiple batches, images only for reference.

ZCYS51R5-M6PT-01

Part No ZCYS51R5-M6PT-01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 500MA 6LN 200 OHM SMD
Datasheet
ZCYS51R5-M6PT-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 6
Impedance @ Frequency 200 Ohm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 250 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.098" (2.50mm)
Win Source Part Number 122792-ZCYS51R5-M6PT-01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ZCYS51R5-M6PT-01 CAD Model

Description

The TDK Corporation ZCYS51R5-M6PT-01 is an obsolete (EOL) electronic component.

  • Supply and Demand Status: Balanced
  • Application: Suitable for use in filters
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • DC Resistance (DCR): 250 mOhm
  • Temperature Range: -25°C to 85°C
