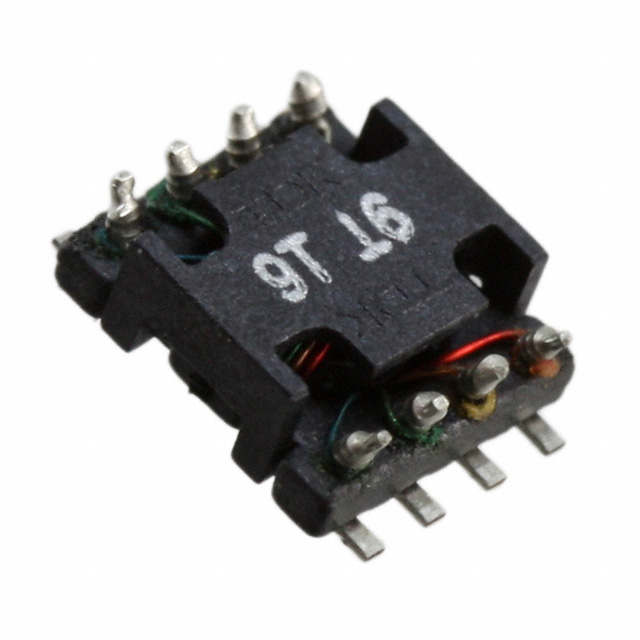

ZCYS51R5-M4PAT-01 TDK Corporation
Same model may have multiple batches, images only for reference.

ZCYS51R5-M4PAT-01

Part No ZCYS51R5-M4PAT-01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 500MA 4LN 200 OHM SMD
Datasheet
ZCYS51R5-M4PAT-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 200 Ohm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 200 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.098" (2.50mm)
Win Source Part Number 103893-ZCYS51R5-M4PAT-01
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ZCYS51R5-M4PAT-01 CAD Model

Description

The TDK Corporation ZCYS51R5-M4PAT-01 filter is a signal line type component that is designed for use in electronic devices.

  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Impedance: 200 Ohm @ 100MHz
  • DC Resistance: 200 mOhm
  • Application: Designed for surface-mount applications
  • Height: 2.50mm
  • Description: An essential component in electronic devices that require a high-quality and reliable solution
