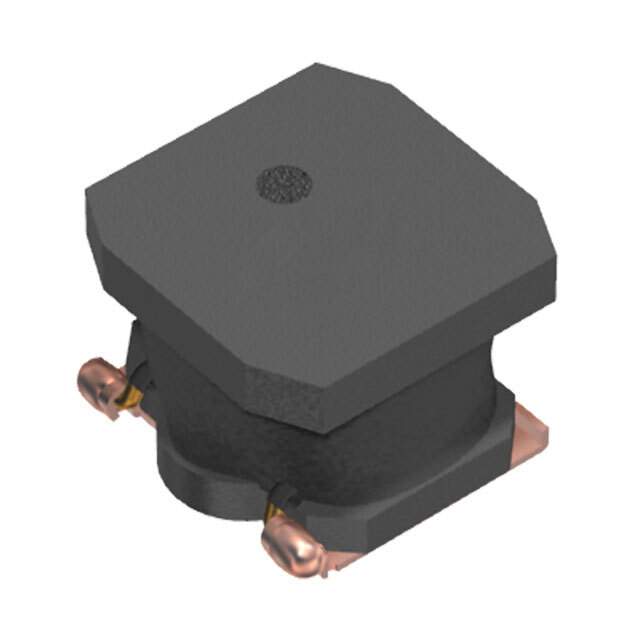

Same model may have multiple batches, images only for reference.

VLS6045EX-1R0N

Name: VLS6045EX-1R0N
Brand: TDK Corporation
SKU: 799114
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VLS6045EX-1R0N
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 1UH 6A 16 MOHM SMD / Inductor Power Shielded Wirewound 1uH 30% 100KHz Ferrite 6A 0.0156Ohm DCR 2424 T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Series	VLS-EX
Packaging	Reel package
Type	Wirewound
Material - Core	Ferrite
Inductance	1μH
Tolerance	±30%
Current Rating	6A
Current - Saturation	12A
Shielding	Shielded
DC Resistance (DCR)	16 mOhm Max
Operating Temperature Range	-40°C ~ 105°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum)	0.177" (4.50mm)
Win Source Part Number	799114-VLS6045EX-1R0N
Popularity	Medium
Supply and Demand Status	Balance
Family Name	VLS
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian VLS6045EX-1R0N CAD Model

Alternative Products

Description

The TDK Corporation VLS6045EX-1R0N is a wirewound shielded inductor manufactured by TDK Corporation.

Core: Ferrite
Inductance: 1μH
Current Rating: 6A
Package: Nonstandard
Dimensions: 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height: 0.177" (4.50mm)
Operating Temperature: -40°C ~ 105°C
Tolerance: ±30%
Current Saturation: 12A
DC Resistance (DCR): 16 mOhm Max
Applications: Power supplies, DC-DC converters, noise filters
Halogen-Free: Yes
EOL Date: 2029 (estimated)
