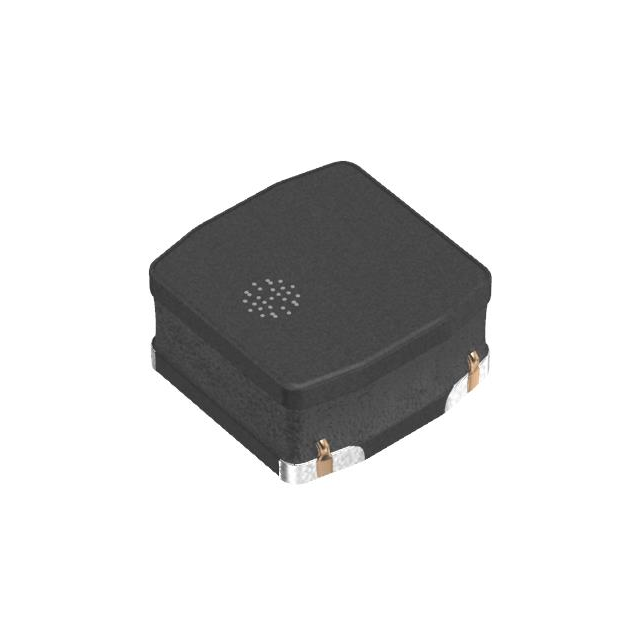

VLS3015CX-680M-1 TDK Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

VLS3015CX-680M-1

Part No VLS3015CX-680M-1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 68UH 500MA 1.657OHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, ChokesFixed Inductors
Mfr TDK Corporation
Series VLS-CX-1
Part Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 μH
Tolerance ±20%
Current Rating (Amps) 500 mA
Current - Saturation (Isat) 320mA
Shielding Shielded
DC Resistance (DCR) 1.657Ohm Max
Operating Temperature -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 3015
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number VLS3015CX
Ultra Librarian 3D Model Ultra Librarian VLS3015CX-680M-1 CAD Model
