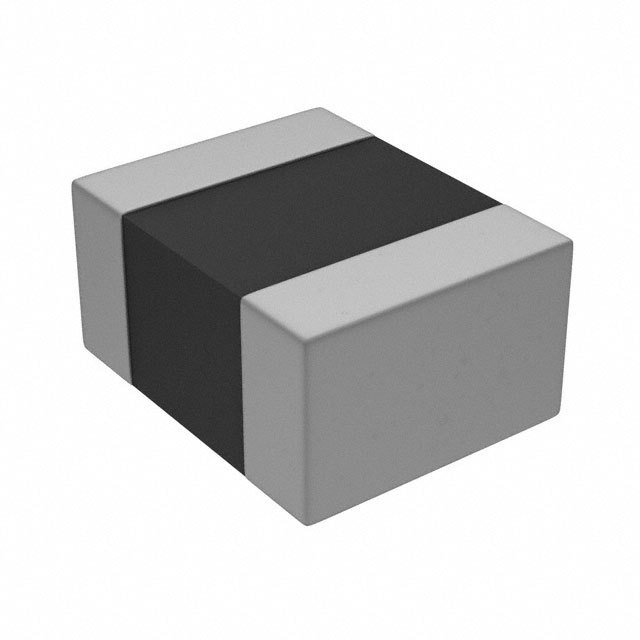

The TFM201610A-R47M-T00 is a thin-film metal power inductor manufactured by TDK Corporation. It is designed for power management applications, particularly in portable electronic devices where space and efficiency are paramount.

Applications


• Smartphones: Power management in smartphone circuits.

• Tablets: Voltage regulation in tablet devices.

• Wearable Devices: Power supply for smartwatches and fitness trackers.

• Portable Gaming Consoles: Power circuitry in handheld gaming systems.

• DC-DC Converters: Voltage step-up and step-down in DC-DC conversion circuits.

Features


• Small Size: Compact 2016 (2.0 x 1.6 mm) package.

• Low DC Resistance: Minimizes power losses and maximizes efficiency.

• Inductance Value: Offers an inductance of 0.47µH (R47 = 0.47).

• Metal Alloy Core: Provides excellent saturation characteristics and stable inductance.

• High Current Capability: Handles high current levels without significant inductance degradation.

Benefits


• Space Saving: The small footprint enables integration into tight spaces within portable devices.

• High Efficiency: Low DC resistance minimizes energy wastage, leading to higher efficiency.

• Stable Inductance: Metal alloy core ensures consistent inductance even under varying current and temperature conditions.

• Reliable Performance: The high current handling capability offers reliable performance under demanding load conditions.

• Improved Battery Life: Reduced power loss contributes to longer battery life in battery-powered devices.

Additional Details

The TFM201610A-R47M-T00 adheres to RoHS compliance, reflecting its environmentally friendly design. Consult the manufacturer's datasheet for specific electrical characteristics, including saturation current and operating temperature range. It is a crucial component for ensuring stable and efficient power delivery in portable electronic systems.
