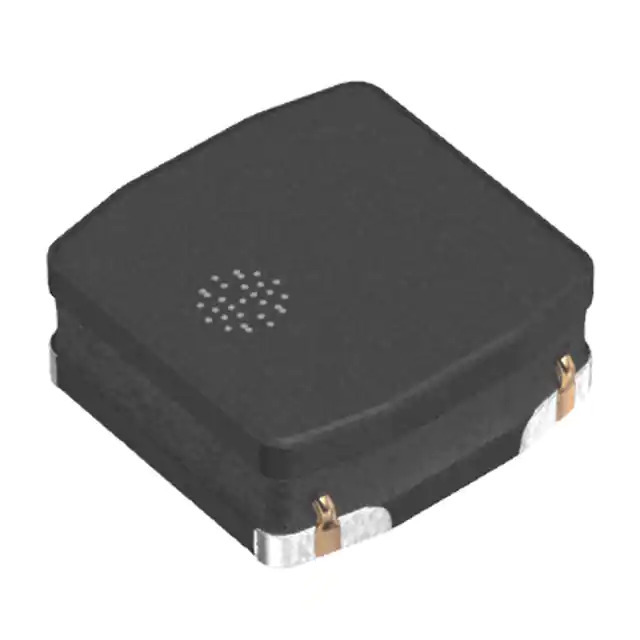

VLS3012HBX-1R0M TDK Corporation
Same model may have multiple batches, images only for reference.

VLS3012HBX-1R0M

Part No VLS3012HBX-1R0M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 5.13A 47 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series VLS-HBX
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 5.13 A
Current - Saturation (Isat) 5.5A
Shielding Shielded
DC Resistance (DCR) 47mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370431-VLS3012HBX-1R0M
Ultra Librarian 3D Model Ultra Librarian VLS3012HBX-1R0M CAD Model

Description

The VLS3012HBX-1R0M is a drum core, wirewound inductor from TDK Corporation.

  • Product: Inductor
  • Manufacturer: TDK Corporation
  • Series: VLS-HBX
  • Type: Drum Core, Wirewound
  • Mounting Type: Surface Mount
  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Height: 0.047" (1.20mm)
  • Inductance: 1 μH
  • Current Rating: 5.13 A
  • Shielding: Shielded
  • DC Resistance: 47mOhm Max
  • Tolerance: ±20%
  • Temperature Range: -40°C to 105°C
  • Packaging: Tape and Reel
  • REACH: Unaffected
  • ECCN: EAR99
