Same model may have multiple batches, images only for reference.

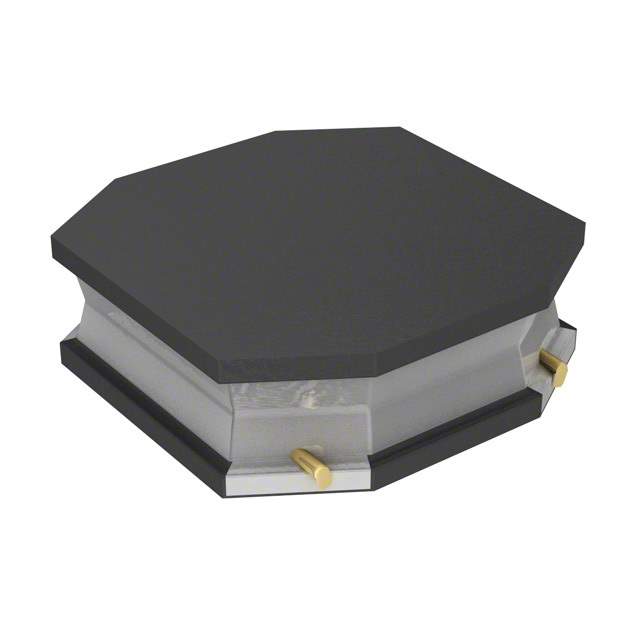

VLS3010T-220MR46 Real Image
Same model may have multiple batches, images only for reference.

VLS3010T-220MR46

Part No VLS3010T-220MR46
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 460MA 900 MOHM
Datasheet
VLS3010T-220MR46 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 460mA
Current - Saturation 460mA
DC Resistance (DCR) 900 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 036386-VLS3010T-220MR46
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLS3010T-220MR46 CAD Model

Description

The TDK Corporation 036386-VLS3010T-220MR46 is a wirewound inductor with an inductance of 22μH and a tolerance of ±20%.

  • Current Rating: 460mA
  • DC Resistance (DCR): 900 mOhm max
  • Mounting: surface mount applications
  • Height: 0.039" (1.00mm)
  • Status: not for new designs
  • Supply and demand: balanced
  • Category: inductors, coils, chokes
  • Temperature Range: -40°C to 105°C
