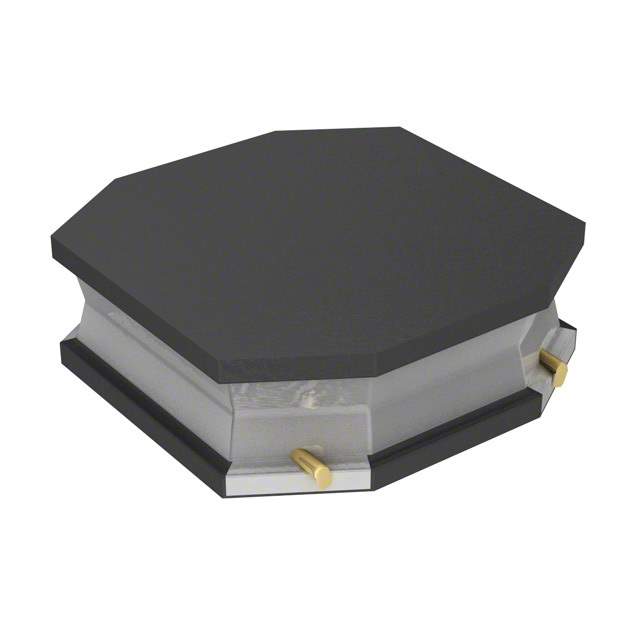

The VLS3010T-1R5N1R6 is a wire-wound inductor manufactured by TDK Corporation. It is designed for use in power circuits and DC-DC converters where a compact size and specific inductance value are required.

Applications

• Mobile Devices: Power management and DC-DC conversion.
• Portable Electronics: Power supply filtering and regulation.
• DC-DC Converters: Smoothing ripple current.
• Power Supplies: Filtering and energy storage.
• RF Circuits: Impedance matching and filtering.

Features

• Compact Size: 3.0 x 3.0 x 1.0 mm dimensions.
• Inductance Value: 1.5 μH inductance.
• Rated Current: Handles rated DC current levels.
• Low DC Resistance: Minimizes power loss, increasing efficiency.
• Operating Temperature: Designed to operate over a specified temperature range.

Benefits

• Space Saving: Enables smaller electronic device designs.
• Improved Efficiency: Low DCR minimizes power dissipation.
• Stable Performance: Reliable performance over a range of operating temperatures.
• Reduced Size and Weight: Enables smaller and lighter products.
• Optimized Inductance: Provides the necessary inductance for specific circuit functions.

Additional Details

The VLS3010T-1R5N1R6 inductor features a shielded construction to minimize electromagnetic interference (EMI). This allows for closer placement of components on the circuit board without causing interference issues. It's designed for surface mount technology (SMT) and is well-suited for automated assembly processes. The exact rated current, DC resistance, self-resonant frequency (SRF) and Q-factor can be found in the detailed TDK datasheet.
