Same model may have multiple batches, images only for reference.

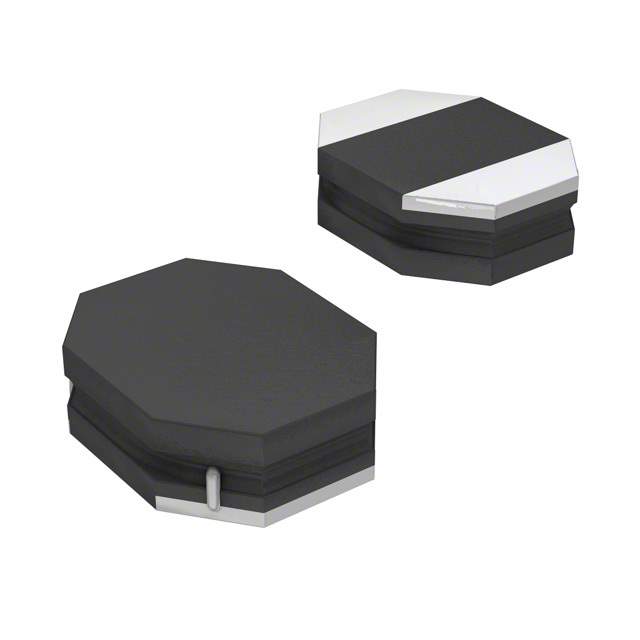

VLS252008ET-1R0N Real Image
Same model may have multiple batches, images only for reference.

VLS252008ET-1R0N

Part No VLS252008ET-1R0N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 970MA 219 MOHM SMD / 1 µH Shielded Drum Core, Wirewound Inductor 970 mA 219mOhm Max Nonstandard
Datasheet
VLS252008ET-1R0N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLS-E
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±30%
Current Rating (Amps) 970 mA
Current - Saturation (Isat) 1.2A
Shielding Shielded
DC Resistance (DCR) 219mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-15821-1,445-15821-6,445-15821-2
Standard Package 2,000
Win Source Part Number 1103931-VLS252008ET-1R0N
Ultra Librarian 3D Model Ultra Librarian VLS252008ET-1R0N CAD Model

Description

TDK Corporation presents VLS-E series fixed inductors for inductors, coils, and chokes.

  • Product Number: 1103931-VLS252008ET-1R0N
  • Inductance: 1 µH
  • Package: Tape and reel
  • Standard Package: 2,000 pieces
  • Shielded: Yes
  • Type: Drum core and wirewound
  • Height-Seated (Max): 0.031 inches (0.80mm)
  • Tolerance: ±30%
  • Material-Core: Ferrite
  • DC Resistance (DCR): 219mOhm Max
  • Current Rating: 970 mA
  • Inductance Frequency-Test: 1 MHz
  • Dimension: 0.098 inches L x 0.079 inches W (2.50mm x 2.00mm)
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8504.50.4000
  • Other Names: 445-15821-1, 445-15821-6, and 445-15821-2
  • Product Status: Not for new designs
  • Current-Saturation (Isat): 1.2A
