Same model may have multiple batches, images only for reference.

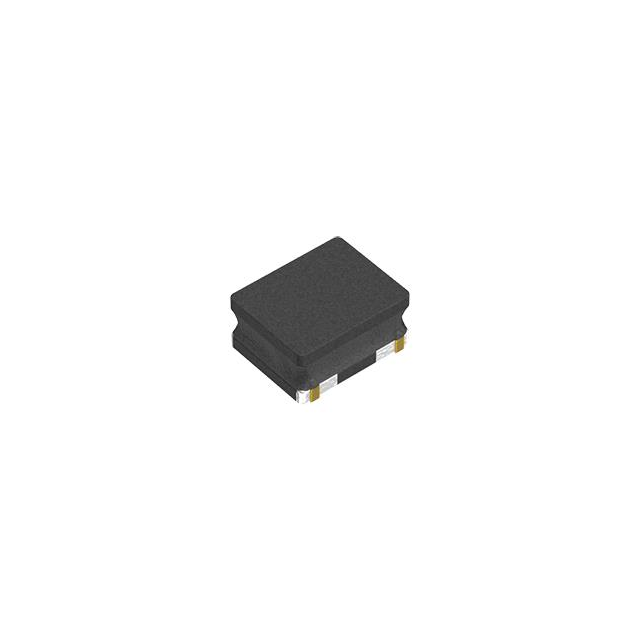

VLS201610CX-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLS201610CX-4R7M

Part No VLS201610CX-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1A 365 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1A
Current - Saturation 820mA
DC Resistance (DCR) 365 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 2016
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 1117206-VLS201610CX-4R7M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLS201610CX-4R7M CAD Model

Description

The VLS201610CX-4R7M is a wirewound inductor from TDK Corporation.

  • Inductance: 4.7μH
  • Current Rating (Max): 1A
  • DC Resistance: 365 mOhm (max)
  • Tolerance: ±20%
  • Package: 2016
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 105°C
  • Suitable for: Various power supply applications
