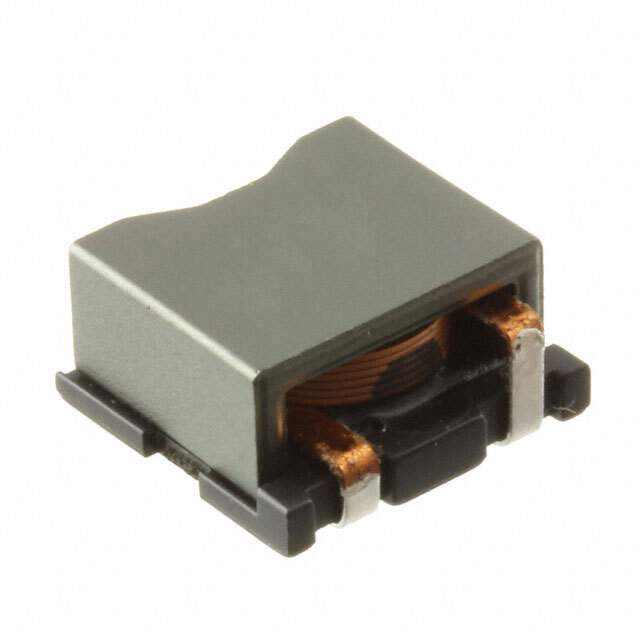

VLM10555T-3R3M7R2-2 Real Image
Same model may have multiple batches, images only for reference.

VLM10555T-3R3M7R2-2

Part No VLM10555T-3R3M7R2-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 7.2A 9.55MOHM SM / 3.3 µH Shielded Drum Core, Wirewound Inductor 7.2 A 9.55mOhm Max Nonstandard
Datasheet
VLM10555T-3R3M7R2-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLM
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 7.2 A
Current - Saturation (Isat) 12A
Shielding Shielded
DC Resistance (DCR) 9.55mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.417" L x 0.413" W (10.60mm x 10.50mm)
Height - Seated (Max) 0.220" (5.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-9519-6,VLM10555T3R3M7R22,445-9519-1,445-9519-2
Standard Package 500
Win Source Part Number 1178605-VLM10555T-3R3M7R2-2
Ultra Librarian 3D Model Ultra Librarian VLM10555T-3R3M7R2-2 CAD Model

Description

The TDK Corporation VLM10555T-3R3M7R2-2 is a fixed inductor that is used in various electronic applications.

  • Supply and Demand Status: Unlimited
  • Inductance: 3.3μH
  • Current Rating: 7.2A
  • DC Resistance: 9.55mOhm Max
  • Frequency Self-Resonant: -
  • Package: Tape & Reel
