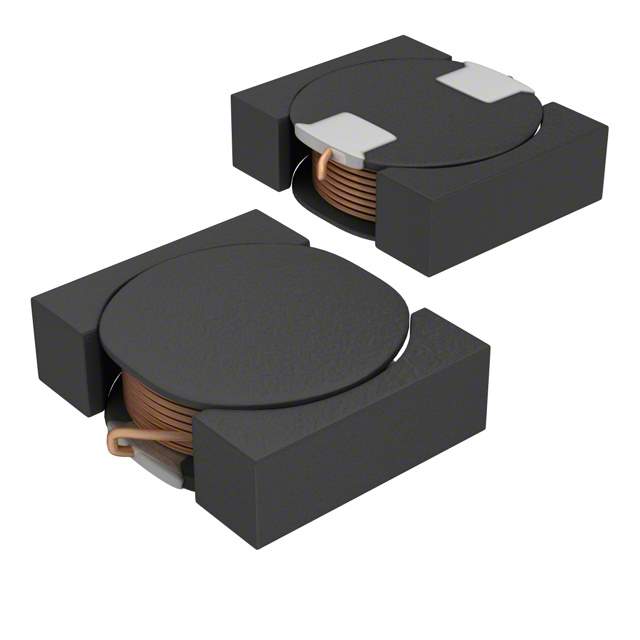

VLF504015MT-6R8M Real Image
Same model may have multiple batches, images only for reference.

VLF504015MT-6R8M

Part No VLF504015MT-6R8M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 6.8UH 2A 100 MOHM SMD / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 6.8μH
Tolerance ±20%
Current Rating (Amps) 2A
Current - Saturation 1.65A
Shielding Shielded
DC Resistance (DCR) 100mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807024-VLF504015MT-6R8M
Ultra Librarian 3D Model Ultra Librarian VLF504015MT-6R8M CAD Model

Description

The VLF504015MT-6R8M is a shielded wirewound inductor designed for use in a variety of applications.

  • Inductance: 6.8μH
  • Tolerance: ±20%
  • Current Saturation: 1.65A
  • DC Resistance (DCR): 100mOhm max
  • Mounting: SMD (SMT)
  • Packaging: Reel
  • Manufacturer: TDK Corporation
  • Temperature Range: -40°C to 105°C
